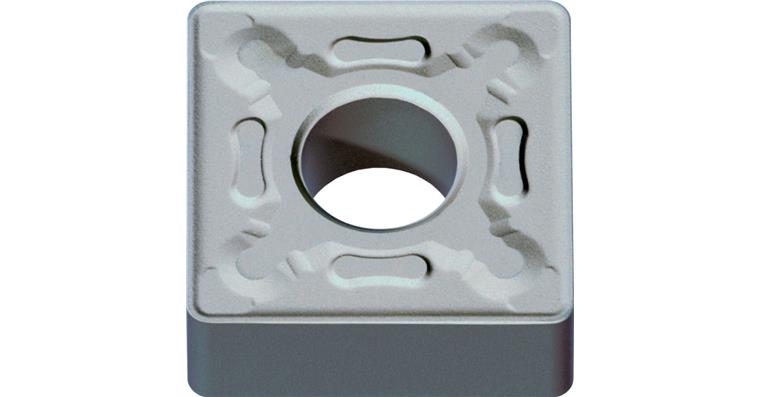

ATORN indexable insert, negative, SNMG 120408-RP HC7620

ATORN indexable insert, negative, SNMG 120408-RP HC7620

ATORN indexable insert, negative, SNMG 120408-RP HC7620
Item no: 1018582 306

Online price:

Only while stocks last: 28

Application
For longitudinal turning and facing with a wide infeed range and stable cutting geometry in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and durability, for high process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: SNMG 120408
Material to be processed: Cast metal | Steel
min./max. ap: 1-6 mm
f min./max.: 0.2-0.5 mm/U
Materials group: K (secondary application) | P (primary application)
f min.: 0,2 mm/r
max. f: 0,5 mm/r
max. ap: 6 mm
min. ap: 1 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP
Min./max. Vc in steel: 80-280 m/min
Min./max. Vc in cast iron: 120-260 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870606

EAN no.: 4050293352030

Product Datasheet
