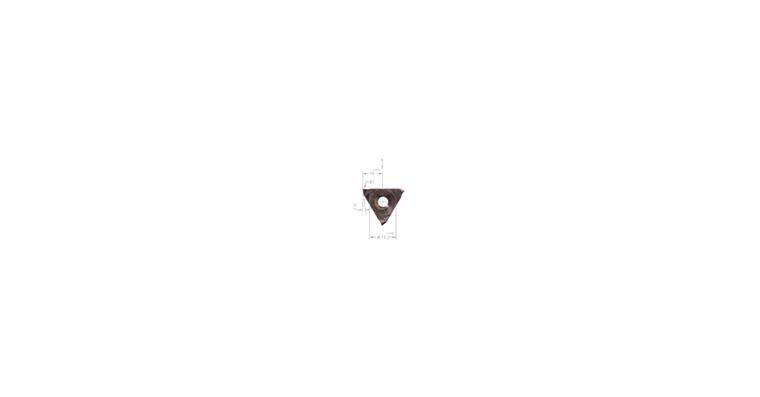

Indexable insert DED.0400.02-D for holder R/L..3-D cat. no. 18765-18766

Versions

Item no: 1018769 109

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
For copy and precision turning. Universal use for almost all materials. Limited use for dry machining.

Execution

3 cutting edges
Sintered version
Positive-ground cutting edge geometries
Extremely soft cut
Low cutting forces
Cutting-off insert with chip breaker
High thermal and chemical stability
Low friction coefficient

Brand: DUEMMEL
Nominal dimension of slot width: 4,0 mm
f min./max.: 0.02-0.25 mm/U
Machining direction: Neutral
Surface: TiAlN
Material to be processed: Stainless steel | Special alloy | Non-ferrous metal | Steel | Cast metal
Min./max. Vc in steel: 60-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in cast iron: 20-180 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in special alloys: 15-150 m/min
Carbide type: AL41F

Manufacturer part no.: 11960312

EAN no.: 4050293275841
