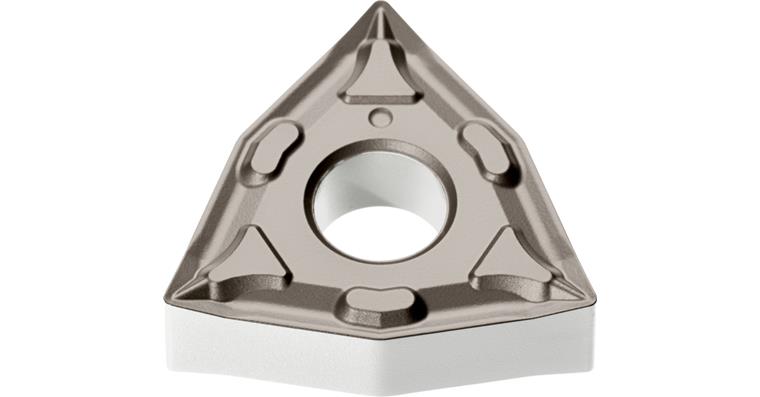

ATORN indexable insert, negative, WNMG 060404-FM HC7510

ATORN indexable insert, negative, WNMG 060404-FM HC7510

ATORN indexable insert, negative, WNMG 060404-FM HC7510
Item no: 1018620 510

Online price:

Only while stocks last: 3
Replacement article

Application
For longitudinal turning and facing with low cutting depths in favourable cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Very positive chip breaker for ideal chip breaking at lower cutting depths


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Good
Carbide type ISO: M10
Carbide type: HC7510
ISO-Code Rotating: WNMG 060404
Material to be processed: Steel | Stainless steel
min./max. ap: 0.2-1 mm
f min./max.: 0.05-0.12 mm/U
Materials group: P (primary application) | M (primary application)
f min.: 0,05 mm/r
max. f: 0,12 mm/r
max. ap: 1 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in steel: 140-320 m/min
Min./max. Vc in stainless steel: 175-270 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870470

EAN no.: 4050293081206
