ATORN boring bar A20Q SVVCR 11

ATORN boring bar A20Q SVVCR 11

ATORN boring bar A20Q SVVCR 11
Item no: 1018514 115

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning with DC indexable insert 35°

Execution

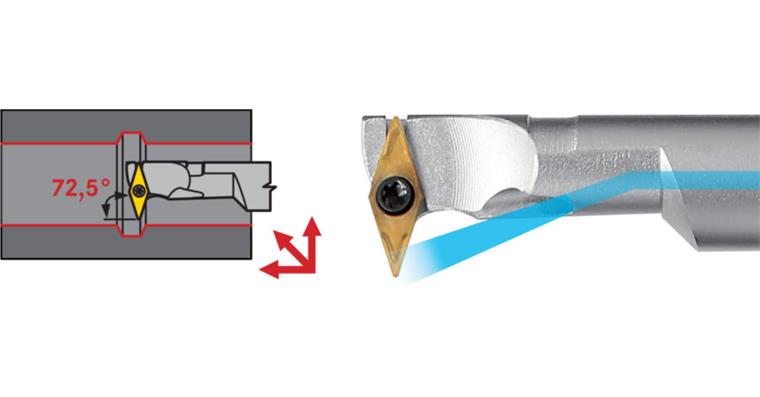

Precision-made boring bar, steel, with internal cooling, type V, pitch angle 72.5°, tip angle 35°, clearance angle 7°

Advantage
  • very slim geometry, optimised for contour turning work
  • positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: A20Q SVVC R/L 11
Min. bore diameter (D min.): 25 mm
Shank diameter (d): 20 mm
Clearance length (l2): 9,5 mm
Length (l1): 180 mm
Clamping surface height (h): 19 mm
Suitable for indexable inserts (ISO): VC.. 11..
Tool design: Right
DIN: 8024

ATORN-No.: 12232994

EAN no.: 4066107015954

Product Datasheet
