ATORN boring bar, pos., w. IC E25S SVJCL 16

ATORN boring bar, pos., w. IC E25S SVJCL 16

ATORN boring bar, pos., w. IC E25S SVJCL 16
Item no: 1018509 626

Online price:

Available in 4-6 working days.

Application

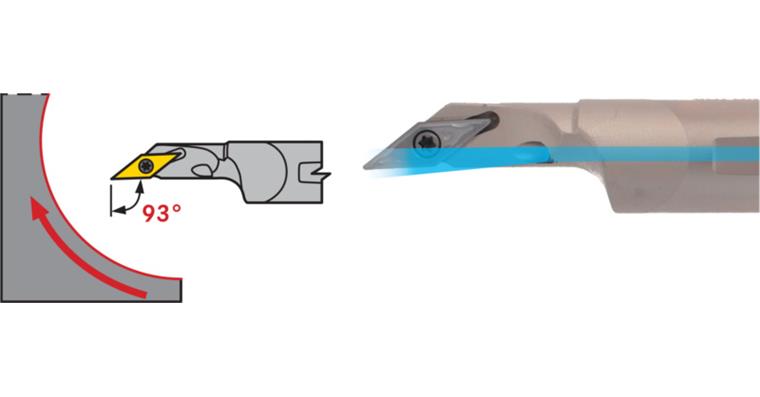

For turning blind hole radii using VC 35° indexable inserts.

Execution
Precision-made boring bar, solid carbide, with internal cooling, type V, pitch angle 52°, tip angle 35°, clearance angle 7°

Advantage
  • Very slim geometry, optimised for contour turning work
  • Positive body geometry ensures low cutting forces
  • Very high rigidity and excellent cutting quality thanks to HSS supporting material


Brand: ATORN
ISO name: E25S SVJC R/L 16
Min. bore diameter (D min.): 28 mm
Shank diameter (d): 25 mm
Clearance length (l2): 44 mm
Length (l1): 250 mm
Clamping surface height (h): 24 mm
Programming size (f): 4,6 mm
Suitable for indexable inserts (ISO): VC.. 1604..
Tool design: Left
DIN: 8024

ATORN-No.: 12232757

EAN no.: 4050293692051

Product Datasheet
