ATORN SDUC offset boring bar, steel, positive, right, A 16 Q SDUC R/L 07

Versions

Item no: 1018496 203

Online price:

Catalogue price: You save:

Still in stock: 1

Min. order quantity: 1

Application

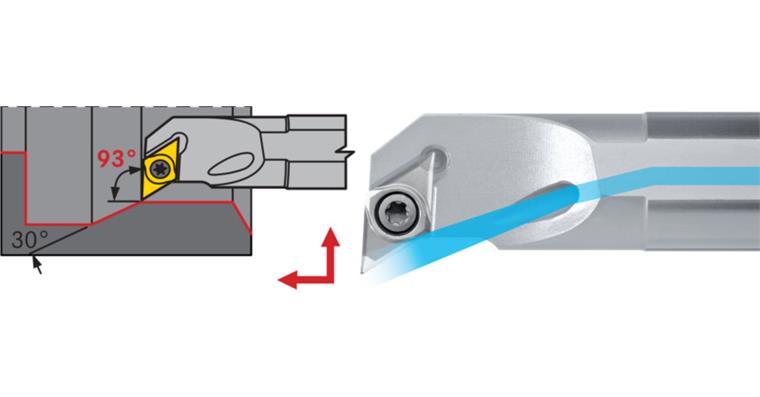

For longitudinal and copy turning with DC 55° indexable insert.

Execution
precision-manufactured steel boring bar, with inner cooling, D type, 93.5° pitch angle, 55° tip angle, 7° clearance angle

Advantage

very slim geometry, optimised for contour turning work
positive body geometry ensures low cutting forces

Brand: ATORN
ISO name: A 16 Q SDUC R/L 07
Min. bore diameter (D min.): 22 mm
Shank diameter (d): 16 mm
Cutting edge height (h1): 7,5 mm
Clearance length (l2): 25 mm
Length (l1): 180 mm
Clamping surface height (h): 15 mm
Programming size (f): 11 mm
Suitable for indexable inserts (ISO): DC.. 0702..
Tool design: Right
DIN: 8024

ATORN-No.: 11111065

EAN no.: 4050293110807

Product Datasheet
