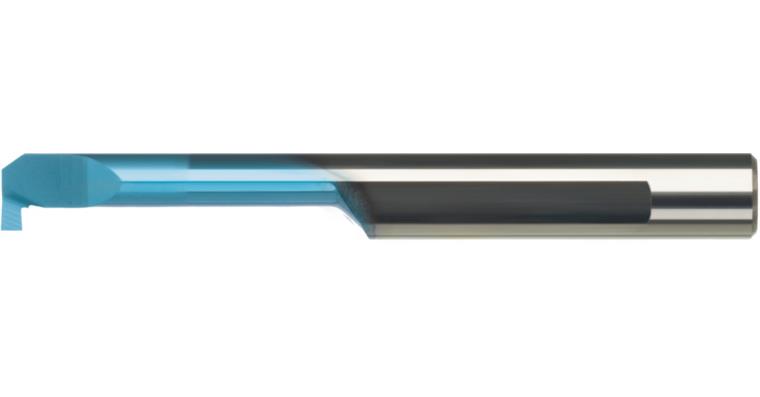

ATORN mini cutting insert AGR 6.0mm B1.0 L15 HC5615

ATORN mini cutting insert AGR 6.0mm B1.0 L15 HC5615

1018317127 ATORN mini cutting insert AGR 6.0mm B1.0 L15 HC5615
Item no: 1018317 127

Online price:

Still in stock: 1

Application
For internal recessing in the material groups steel, stainless steel and special alloys, hard machining up to 65 HRC at high cutting speeds and under average cutting conditions.

Execution
Solid carbide cutting insert with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Stable geometry for the cutting insert
  • Innovative coating technology for universal use with very high service life requirements


Brand: ATORN
ISO name: AG
Shank diameter (D): 6 mm
Length (L): 51 mm
Clearance length (L1): 15 mm
Programming size 2 (H): 1,4 mm
Recessing width (B): 1 mm
Programming size (F): 2,8 mm
Min. bore diameter (D min.): 6,1 mm
Machining direction: Right
Carbide type: HC5615
Material to be processed: Steel | Stainless steel | Special alloy | Hardened material

ATORN-No.: 11946253

EAN no.: 4050293266825

Product Datasheet
