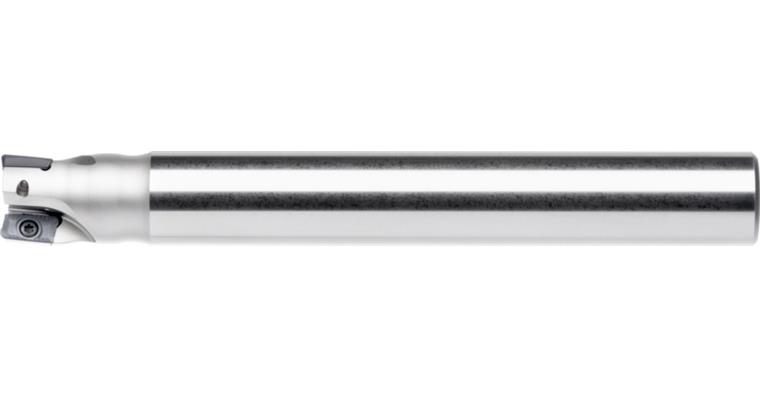

ATORN 90° ang. mill cutter w. shaft D 40.0mm/4 tooth/lng for ind ins AD.X 1705..

ATORN 90° ang. mill cutter w. shaft D 40.0mm/4 tooth/lng for ind ins AD.X 1705..

ATORN 90° ang. mill cutter w. shaft D 40.0mm/4 tooth/lng for ind ins AD.X 1705..
Item no: 1017553 117

Online price:

Available in 5-7 working days.

Execution
  • Wear-resistant, nickel-plated version
  • With internal cooling
  • Tightening torque for clamping screw (indexable insert) 3.5 Nm (TX 15)

Advantage
  • Highly positive indexable insert
  • Low power consumption
  • Precise 90° angular milling


Brand: ATORN
Cutting edge diameter (D): 40 mm
Clearance length (L2): 50 mm
Length (L1): 250 mm
Shank diameter (d): 32 mm
max. ap: 16,5 mm
Number of cutting edges: 4 PCS

ATORN-No.: 10617182

EAN no.: 4050293389067

Product Datasheet
