ATORN end mill, 90 degrees, inner cooling, 40.0 mm, T= 3, shank DIN 1835B

ATORN end mill, 90 degrees, inner cooling, 40.0 mm, T= 3, shank DIN 1835B

ATORN end mill, 90 degrees, inner cooling, 40.0 mm, T= 3, shank DIN 1835B
Item no: 1017510 107

Online price:

Available in 4-6 working days.

Application
For universal use in all materials for rough cutting.

Execution
  • With Weldon shank
  • Wear-resistant, nickel-plated version
  • With internal cooling
  • clamping screw tightening torque (indexable insert) M2.5 = 1.2 Nm


Brand: ATORN

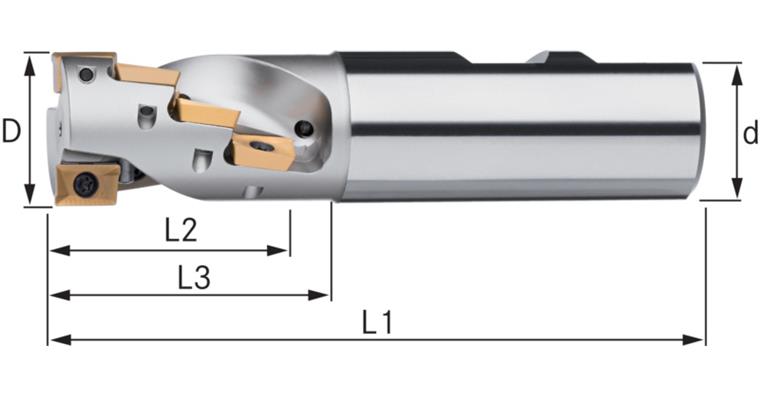

Cutting edge diameter (D): 40 mm
Clearance length (L2): 55 mm
Length (L1): 130 mm
Shank diameter (d): 32 mm
max. ap: 54 mm
Number of cutting edges: 3 PCS
Number of cutting inserts (WSP Gesamt): 18 PCS
Suitable indexable insert no. (WSP Typ): 21

ATORN-No.: 11119040

EAN no.: 4050293114072

Product Datasheet
