ATORN ind. inserts, drill/counter sink mill. cutter, 90 deg., D=32.0 mm APKT1603

ATORN ind. inserts, drill/counter sink mill. cutter, 90 deg., D=32.0 mm APKT1603

ATORN ind. inserts, drill/counter sink mill. cutter, 90 deg., D=32.0 mm APKT1603
Item no: 1017501 104

Online price:

Available in 4-6 working days.

Application
For drilling/countersinking in all materials.

Execution
  • With Weldon shank
  • Wear-resistant, nickel-plated version
  • Robust supports
  • Clamping screw tightening torque (indexable insert) M4 = 5.2 Nm

Advantage
  • High cutting performance
  • Safe chip removal thanks to positive cutting geometry


Brand: ATORN

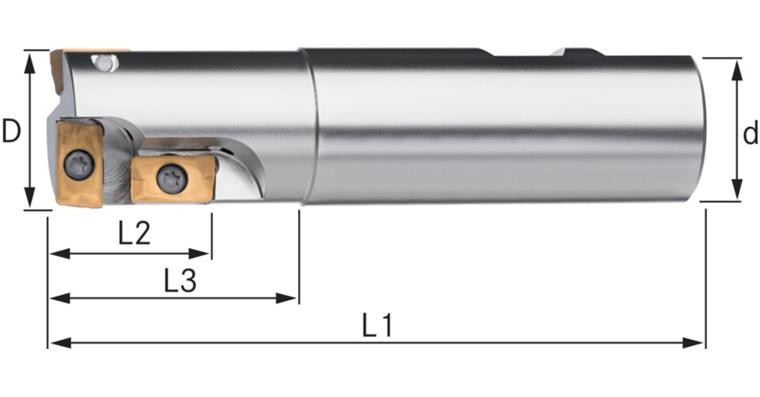

Cutting edge diameter (D): 32 mm
Clearance length (L3): 50 mm
Length (L1): 130 mm
Shank diameter (d): 32 mm
max. ap: 30 mm
Number of cutting edges: 2 PCS
Number of cutting inserts (WSP Gesamt): 3 PCS
Suitable indexable insert no. (WSP Typ): 27

ATORN-No.: 11117232

EAN no.: 4050293113396

Product Datasheet
