ATORN SC torus milling cutter, long diameter 8.0 x 12 x 40 x 75 mm r0.5 T=4 RT65

ATORN SC torus milling cutter, long diameter 8.0 x 12 x 40 x 75 mm r0.5 T=4 RT65

ATORN SC torus milling cutter, long diameter 8.0 x 12 x 40 x 75 mm r0.5 T=4 RT65
Item no: 1016818 309

Online price:

Available for immediate delivery

Application
Torus milling cutter, long, with short blade for processing materials up to 65 HRC, e.g. for die and mould making.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • With clearance
  • Type H
  • Chip angle -5° -7°
  • RockTec 65-coated
  • Radius tolerance = 0/-0.010 mm

Advantage
  • Best chip removal and temperature resistance
  • RockTec 65 coating for maximum service life


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 8 mm
Cutting edge length: 12 mm
Clearance length: 40 mm
Length: 75 mm
Clearance diameter: 7,4 mm
Shank diameter: 8 mm
Edge radius: 0,5 mm
fz hard 52 HRC: 0,06 mm

ATORN-No.: 11860657

EAN no.: 4050293199277

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Folding filter pack = 1 piece for wet/dry vac. cleaner NT 20-1, NT 35-1, NT 45-1
  •
    1/2 inch Zyklop TX® screwdriver bit 9 pieces T 20/25/27/30/40/45/50/55/60
    113,65 €
  • Thread no-go ring gauge for standard ISO threads DIN 2285 nom. dia. M 16 6g
  •
    SC mini torus milling cutter, clearance dia. 2.4 mm, diameter 1-4 mm
    70,84 €

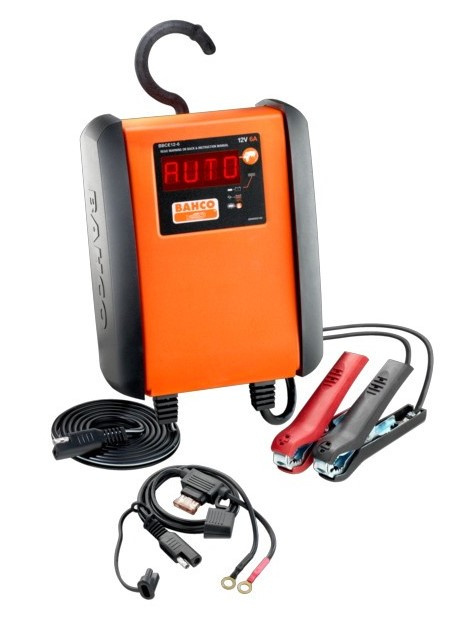

  • Batterielade‐ und Batterieerhaltungsgerät 6 Ampere 8‐stufig für 12V‐(6‐130 Ah)
  •
