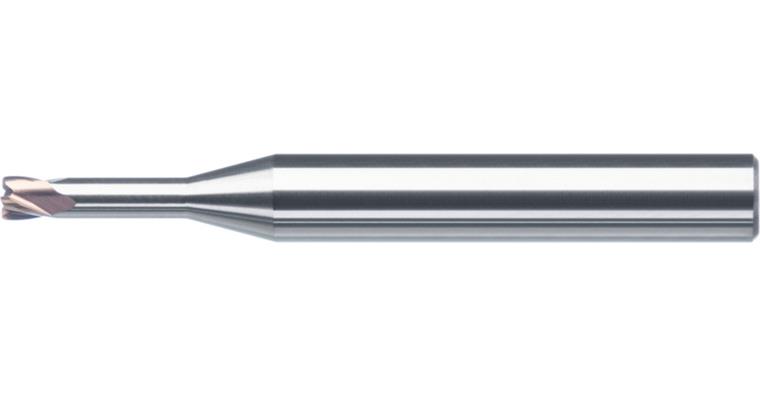

SC mini torus milling cutter, clearance dia. 0.95 mm, edge rad. 0.1 mm, 25°

SC mini torus milling cutter, clearance dia. 0.95 mm, edge rad. 0.1 mm, 25°

SC mini torus milling cutter, clearance dia. 0.95 mm, edge rad. 0.1 mm, 25°
Item no: 1016803 303

Online price:

Available in 8-10 working days.

Application
Torus milling cutter with long neck for machining materials up to 65 HRC, e.g. for countersinking and mould making.

Execution
  • Solid carbide ultra-fine grain
  • HA shaft pursuant to DIN 6535
  • cutting edge finish
  • with clearance
  • type H
  • 0° chip angle
  • RockTec 65-coated
  • Radius tolerance = 0/-0.010 mm

Advantage
  • optimum chip removal and temperature resistance
  • RockTec 65 coating for maximum service life


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 25°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 1 mm
Cutting edge length: 1 mm
Clearance length: 8 mm
Length: 50 mm
Clearance diameter: 0,95 mm
Shank diameter: 6 mm
Edge radius: 0,1 mm
fz hard 52 HRC: 0,018 mm

ATORN-No.: 11869062

EAN no.: 4050293535785

Product Datasheet
