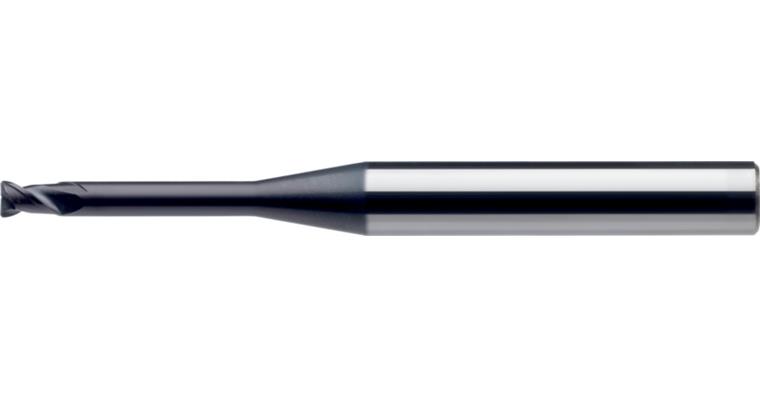

ATORN SC mini torus milling cutter, long, Ø 0.8 x 1.2 x 6 x 50 mm r0.08 T2 RT52

ATORN SC mini torus milling cutter, long, Ø 0.8 x 1.2 x 6 x 50 mm r0.08 T2 RT52

ATORN SC mini torus milling cutter, long, Ø 0.8 x 1.2 x 6 x 50 mm r0.08 T2 RT52
Item no: 1016802 121

Online price:

Available in 8-10 working days.

Application
Miniature torus milling cutter with a long neck for machining materials up to 52 HRC, e.g. in dip cutting and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in accordance with DIN 6535
  • With clearance
  • Type N
  • Chip angle 3°
  • RockTec 52-coated
  • Cutter tolerance Ø 0.2-0.7 mm = 0/-0.012 mm
  • Cutter tolerance Ø 0.7-3.0 mm = 0/-0.020 mm
  • Radius tolerance = 0/-0.010 mm

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 52 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 52
Type: N
Number of cutting edges (Z): 2 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 0,8 mm
Cutting edge length: 1,2 mm
Clearance length: 6 mm
Length: 50 mm
Clearance diameter: 0,75 mm
Shank diameter: 4 mm
Edge radius: 0,08 mm
fz steel 1300: 0,01 mm

ATORN-No.: 11860084

EAN no.: 4050293194234

Product Datasheet
