ATORN SC mini torus mill cttr TiAlSiN 2x2x50 mm clearance 1.91x10 mm R 0.2 mm

Versions

Item no: 1016784 196

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
Torus milling cutter with long neck for machining materials up to 65 HRC, e.g. for countersinking and mould making.

Execution

Cutting material, Ultra Micro fine grain
cutting edge finish
HA shaft in line with DIN 6535
Clearance
type H
With RockTec PRO coating
Radius tolerance = +/- 0.0025 mm

Advantage

optimum chip removal and temperature resistance
Optimised geometry for machining hard materials
maximum service life thanks to RockTec PRO coating

Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 2 mm
Cutting edge length: 2 mm
Clearance length: 10 mm
Length: 50 mm
Clearance diameter: 1,91 mm
Shank diameter: 4 mm
Edge radius: 0,2 mm
fz hard 65 HRC: 0,019 mm

ATORN-No.: 11264183

EAN no.: 4050293654127

Product Datasheet Datasheet cutting values

Versions

Keywords:

[Text nicht gefunden]

SC square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40/TiAIN 12 mm
SC square end mill cyl./6535 HA long 4 cut. edges C-cut P20-K40/TiAIN 10 mm
SC square end mill cyl./6535 HB long 4 cut. edges C-cut P20-K40/TiAIN 20 mm
SC square end mill cyl./6535 HA extra long 4 cut. edges C-cut P20-K40 10 mm
SC square end mill cyl./6535 HA extra long 4 cut. edges C-cut P20-K40 12 mm

198,45 €
ATORN SC mini torus mill cttr TiAlSiN 2x2x60 mm clearance 1.91x20 mm R 0.2 mm
ATORN SC mini torus mill cttr TiAlSiN 2x2x60 mm clearance 1.91x20 mm R 0.3 mm

58,08 €
ATORN SC mini torus mill cttr TiAlSiN 3x3x50 mm clearance 2.92x10 mm R 0.3 mm
ATORN SC torus milling cutter, standard, dia. 3.0 x 9 x 50 mm r0.3 T=4 RT52

47,50 €
ATORN SC torus milling cutter, long, dia. 12.0x16x60x100 mm r 1.0 mm T=4 RT52
Ins. hldr right neg. 0° t. an. 55° s. a. 93° CKJN/R 3225 P 16 f. KNUX-II

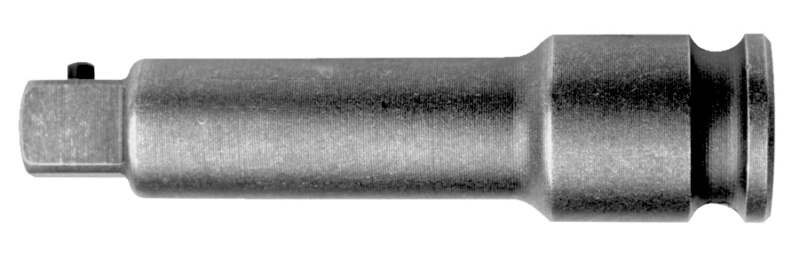

1/4 inch impact screwdriver extension CV special steel length 50 mm
