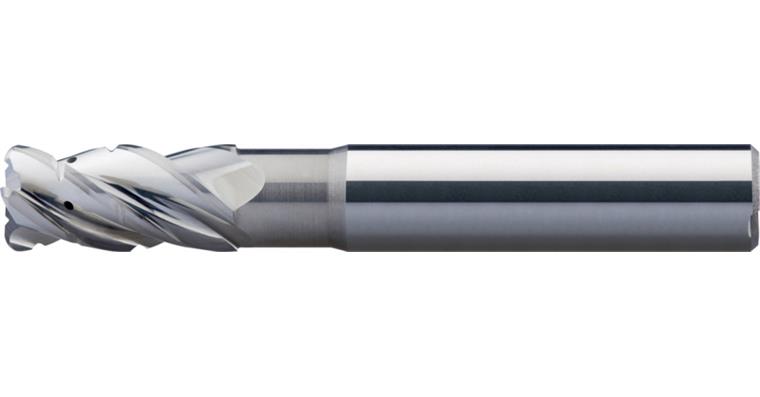

ATORN SC torus milling cutter Z4 HA shaft SB diameter 10.0 x 22 x 72 mm

ATORN SC torus milling cutter Z4 HA shaft SB diameter 10.0 x 22 x 72 mm

ATORN SC torus milling cutter Z4 HA shaft SB diameter 10.0 x 22 x 72 mm
Item no: 1016673 601

Online price:

Available for immediate delivery

Application
HPC torus milling cutter with uneven pitch for roughing and finishing of non-ferrous metals with maximum machining performance.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • With chip breaker on the end and at circumference
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Radius tolerance = +/- 0.01 mm
  • with clearance
  • Polish sanding
  • with internal cooling

Advantage
  • Chip breakers on the end and at circumference ensure short chips for long-chipping materials
  • High material removal rate
  • Uneven pitch and twist reduces vibrations
  • High-gloss polished cutting edges for better chip removal
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 38° | 41°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Clearance length: 30 mm
Length: 72 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
Edge radius: 2 mm
fz aluminium: 0,116 mm

ATORN-No.: 11869226

EAN no.: 4050293640793

Product Datasheet Datasheet cutting values
