ATORN SC chamfer mill extra-long 90° diameter 12 mm T=5 ULTRA HB

ATORN SC chamfer mill extra-long 90° diameter 12 mm T=5 ULTRA HB

ATORN SC chamfer mill extra-long 90° diameter 12 mm T=5 ULTRA HB
Item no: 1016581 705

Online price:

Available in 4-6 working days.

Application
For producing 45° chamfers and for deburring up to 1,300 N/mm²

Execution
  • Defined cutting edge rounding
  • 3-5 teeth
  • High-performance ULTRA coating for universal application
  • Extra-long version for hard-to-reach areas

Notes
Shank variant HA up to dia. 4 mm

Brand: ATORN
Cutting edge diameter: 12 mm
Werkstückkante: 45 Grad
Chamfer angle: 90 Degree
Type: N
Number of cutting edges (Z): 5 PCS
Insert diameter min.: 1,2 mm
Surface: ULTRA
Shank diameter: 12 mm
Tool holding device: HB parallel shank
Cutting edge length (S): 7,6 mm
Length: 120 mm

ATORN-No.: 11201284

EAN no.: 4066107036171

Product Datasheet Datasheet cutting values
Additional articles

Please select a button.

Similar product
Versions
loading
Keywords:

You might also be interested in this

  • ATORN SC chamfer mill extra-long 60° diameter 8 mm T=5 ULTRA HB
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.40 mm
  •
    ATORN SC ball nose end mill, short 1.5x2x57 mm T=4 HA RockTec PRO - coated
  •
    1/4 inch external TX® socket vanadium steel E 10
  •
    COMBIDISC grinding disc corundum A-Forte light brown grain 80 dia. 25 mm
  •
    ATORN SC chamfer mill extra-long 60° diameter 6 mm T=5 ULTRA HB
  •
    Schraube VT 3511 (M3,5X11 T15)
  •
    ATORN SC chamfer mill extra-long 90° diameter 4 mm T=4 ULTRA HA
  •
    ATORN hexagon socket 12 mm 3/8 inch DIN 3124
  •

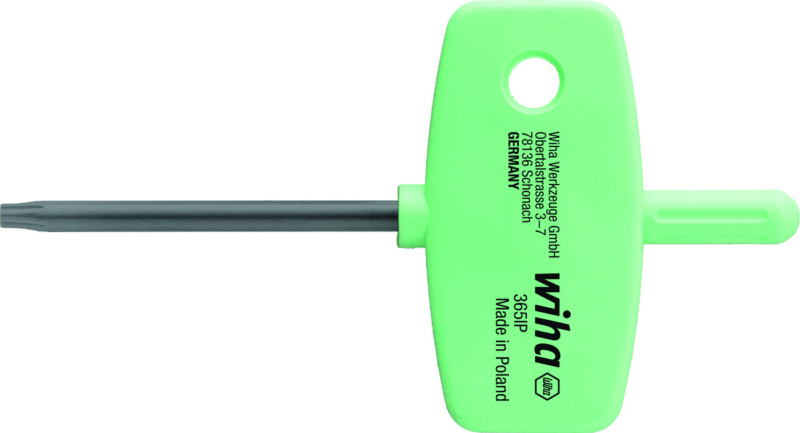

    Pin wrench with key grip TX® PLUS® 365IP 7IP x 35 mm black oxidised
  •
