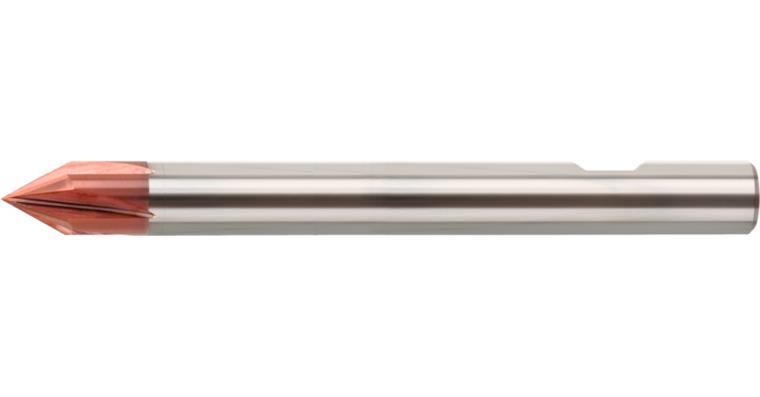

ATORN SC chamfer mill extra-long 60° diameter 10 mm T=5 ULTRA HB

ATORN SC chamfer mill extra-long 60° diameter 10 mm T=5 ULTRA HB

ATORN SC chamfer mill extra-long 60° diameter 10 mm T=5 ULTRA HB
Item no: 1016573 504

Online price:

Available in 4-6 working days.

Application
For producing 30° chamfers and for deburring up to 1,300 N/mm²

Execution
  • defined cutting edge rounding
  • 3-5 teeth
  • High-performance ULTRA coating for universal application
  • Extra-long version for hard-to-reach areas

Notes
Shank variant HA up to dia. 4 mm

Brand: ATORN
Cutting edge diameter: 10 mm
Werkstückkante: 30 Grad
Chamfer angle: 60 Degree
Type: N
Number of cutting edges (Z): 5 PCS
Insert diameter min.: 1,0 mm
Surface: ULTRA
Shank diameter: 10 mm
Tool holding device: HB parallel shank
Cutting edge length (S): 9 mm
Length: 100 mm

ATORN-No.: 11201265

EAN no.: 4066107035983

Product Datasheet Datasheet cutting values
