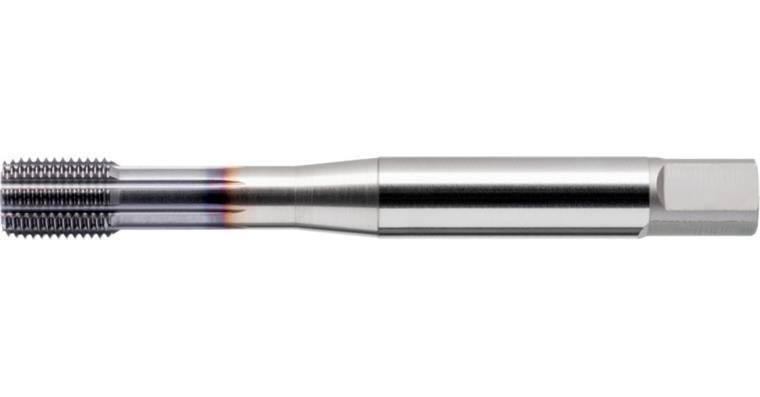

ATORN machine thread former HSSE TiCN DIN 374 MF12 x 1.25 mm 6HX

ATORN machine thread former HSSE TiCN DIN 374 MF12 x 1.25 mm 6HX

ATORN machine thread former HSSE TiCN DIN 374 MF12 x 1.25 mm 6HX
Item no: 1014374 111

Online price:

Available in 6-8 working days.

Application
For manufacturing metric threads in through and blind holes on CNC or conventional machines in the steel, stainless steel and non-ferrous metals up to a strength of 1500 N/mm².

Advantage
  • Innovative shape geometry optimised for machining high-strength materials
  • High-quality, torsion-resistant HSSE cutting material and surface finish ensure a long service life


Brand: ATORN
Material to be processed: Universal use
Surface: TiCN
Lead angle shape: C
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Pitch: 1,25 mm
Cutting material: HSSE
Core hole diameter: 11,45 mm
Length: 100 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 9 mm
Shank square: 7 mm
Coolant supply: External
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 3
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 374

ATORN-No.: 12280320

EAN no.: 4050293438321

Product Datasheet Datasheet cutting values
