Hand tap set 2 pieces DIN 2181 HSS UNF no. 12

Hand tap set 2 pieces DIN 2181 HSS UNF no. 12

Hand tap set 2 pieces DIN 2181 HSS UNF no. 12
Item no: 1014071 310

Online price:

Available in 6-8 working days.

Application
For the production of American Unified fine threads UNF ANSI-B 1.1. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Set containing taper tap (shape D) and third tap (plug) (shape C)
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter in inches: UNF 12 in
Nominal diameter in inches: 12 in
Number of thread starts per inch: 28
Core hole diameter: 4,65 mm
Length: 56 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Twist angle: 0°
Colour ring system: Steels
Included in delivery: Nr. 1 Vorschneider, DIN-Anschnitt Form D (3,5 - 5 Gang)
F Fertigschneider, DIN-Anschnitt Form C (2 - 3 Gang)
Shank style: Cylindrical with square drive
Design: Set
Thread type: UNF
DIN: 2181
Cutting direction: Right-hand cutting
Cutting material: HSS
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps: 6H

EAN no.: 4024496019960

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • SC INDEXABLE INSERT TIALN DIA. 28.0MM
  •
    ATORN HPC drill and plunge end mill, 8x19x26x63, T3, HA shank, ULTRA-coated
  •
    ATORN HPC drill and plunge mill, 6x13x20x57, T3, HB shank, ULTRA-coated
  •
    ATORN HPC drill and plunge mill, 8x19x26x63, T3, HB shank, ULTRA-coated
  •
    ATORN HPC drill and plunge mill, 8x12x21x58, T4, HA shank, ULTRA-coated
  •
    ATORN HPC drill and plunge mill, 4x8x15x54, T4, HB shank, ULTRA-coated
  •
    ATORN HPC drill and plunge mill, 8x12x21x58, T4, HB shank, ULTRA-coated
  •
    ATORN clamping jaws soft type SBW-A version in aluminium 125x20x40 mm
  •

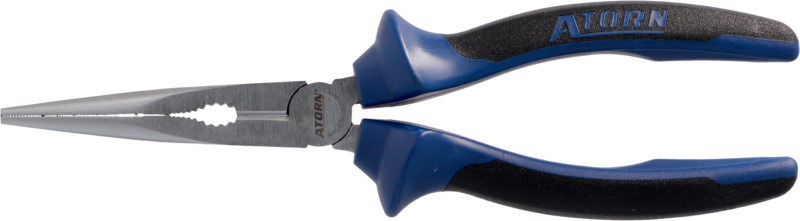

    ATORN snipe nose pliers DIN 5745, 200 mm, straight, 2-component grip
  •
