ATORN 180° high-performance drill, SC TiAlN, 5xD 9.4 mm x 10 mm x 103 mm

ATORN 180° high-performance drill, SC TiAlN, 5xD 9.4 mm x 10 mm x 103 mm

ATORN 180° high-performance drill, SC TiAlN, 5xD 9.4 mm x 10 mm x 103 mm
Item no: 1011100 171

Online price:

Available in 4-6 working days.

Application
For producing drill holes with a 180° hole base in one operation

Execution
Heavy-duty solid carbide drill with 180° precision grinding and drill heels

Advantage
  • drilling and counterboring in a single work step at high cutting speed
  • Innovative geometry ensures good chip removal

Notes
The maximum permissible inclination of the drilling surface is 15° correction factor = 0.25
For spot drilling, multiply feed f [mm/U] by correction factor Kf
  • Spot drill with reduced feed until the tool cuts to 0.25xD over the total ø

  • For angled spot drilling: Retract at double feed rate f [mm/U]

  • After spot drilling at reduced feed rate (correction factor), drilling continues at feed rate f [mm/U] according to recommended cutting data without correction factors

  • Setting a pilot hole is recommended for drilling on flat surfaces.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Angle of the tip: 180 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 9,4 mm
Shank diameter: 10 mm
Chip flute length: 61 mm
Length: 103 mm
f steel 1000: 0,14 mm/r
Edge protection chamfer length: 0,47 mm

ATORN-No.: 12040535

EAN no.: 4050293447644

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN 180° high-performance drill, SC TiAlN, 5xD 8.1 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 8.2 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 8.5 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 9.2 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 9.5 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 9.6 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 9.8 mm x 10 mm x 103 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 9.9 mm x 10 mm x 103 mm
  •

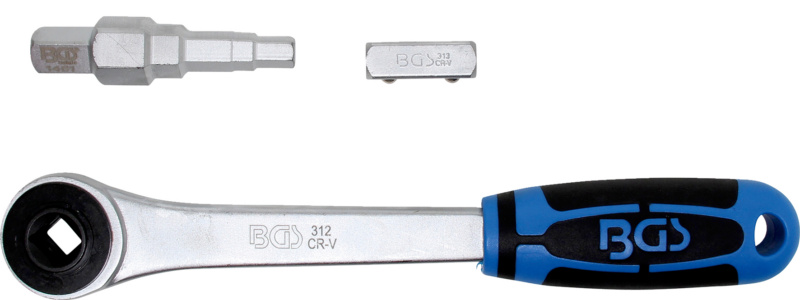

    Pass-through ratchet with step wrench in 3/8, 7/16, 1/2, 5/8, 13/16 inch
  •

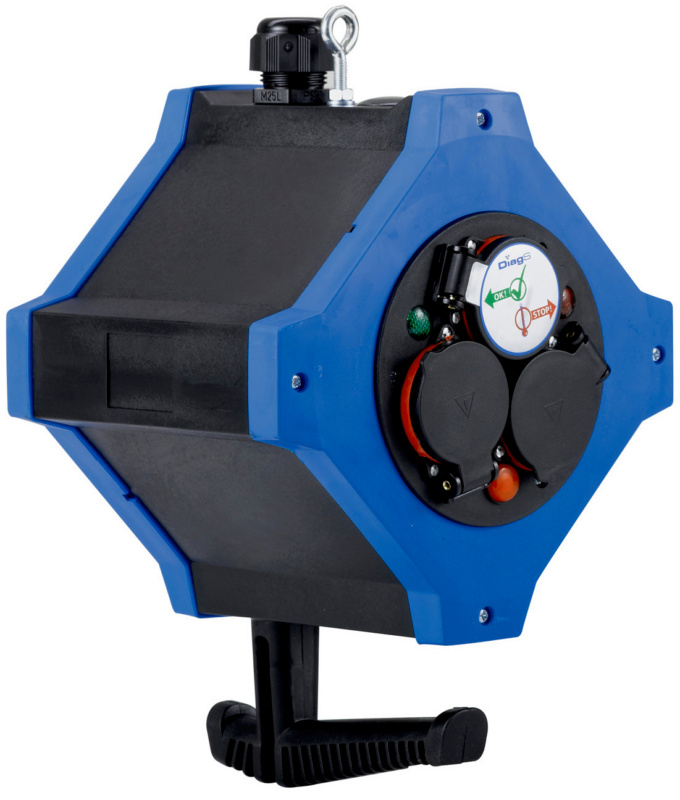

    Energie-Hängeverteiler e.STATION 250 V
  •

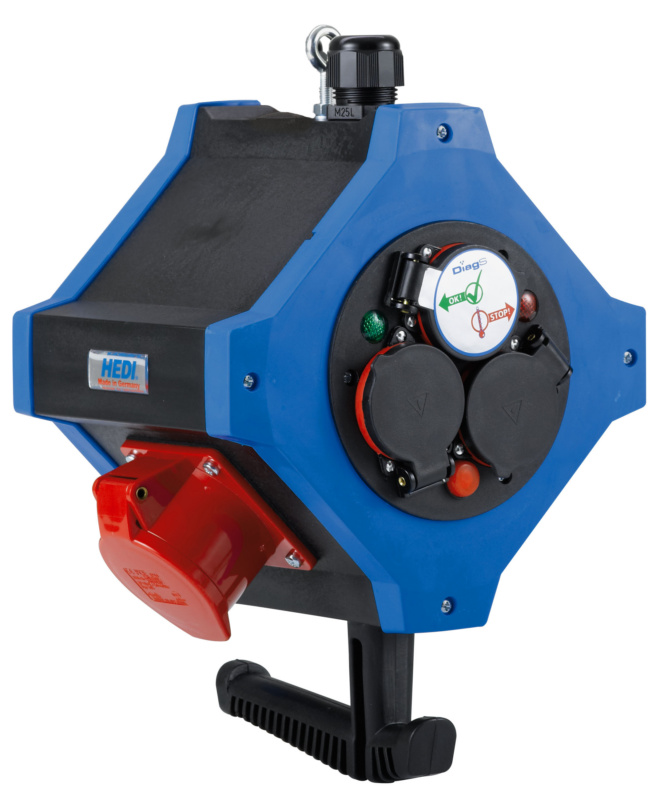

    Energie-Hängeverteiler e.STATION 400 V und 16 A
  •

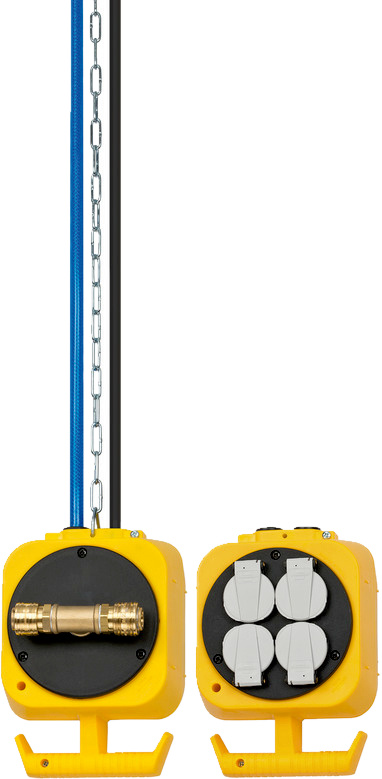

    Power distributor 4XSCHUKO 230 V 2XPNEUMATIC
