ATORN high-perf. drill, SC TiAlN 180° 3xD 4.6 mm x 6 mm x 66 mm

ATORN high-perf. drill, SC TiAlN 180° 3xD 4.6 mm x 6 mm x 66 mm

ATORN high-perf. drill, SC TiAlN 180° 3xD 4.6 mm x 6 mm x 66 mm
Item no: 1011099 116

Online price:

Available in 6-8 working days.

Application

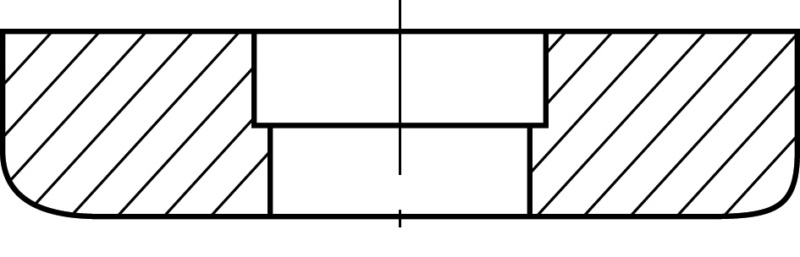

For producing drill holes with a 180° hole base in one operation

Execution
Heavy-duty solid carbide drill with 180° precision grinding and drill heels

Advantage
  • Drilling and sinking in a single work step at high cutting speed
  • Innovative geometry ensures good chip removal

Notes
The maximum permissible inclination of the drilling surface is 45°
inclination up to 15° correction factor = 0.50
inclination up to 30° correction factor = 0.40
inclination up to 45° correction factor = 0.25
For spot drilling, multiply feed f [mm/r] by correction factor Cf
  • Spot drill with reduced feed until the tool cuts to 0.25xD over the total ø

  • For angled spot drilling: Retract at double feed rate f [mm/r]

  • After spot drilling at reduced feed rate (correction factor), drilling continues at feed rate f [mm/r] according to recommended cutting data without correction factors


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 3xD
Angle of the tip: 180 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 4,6 mm
Shank diameter: 6 mm
Chip flute length: 24 mm
Length: 66 mm
f steel 1000: 0,08 mm/r
Edge protection chamfer length: 0,23 mm

ATORN-No.: 12040877

EAN no.: 4050293693379

Product Datasheet Datasheet cutting values
