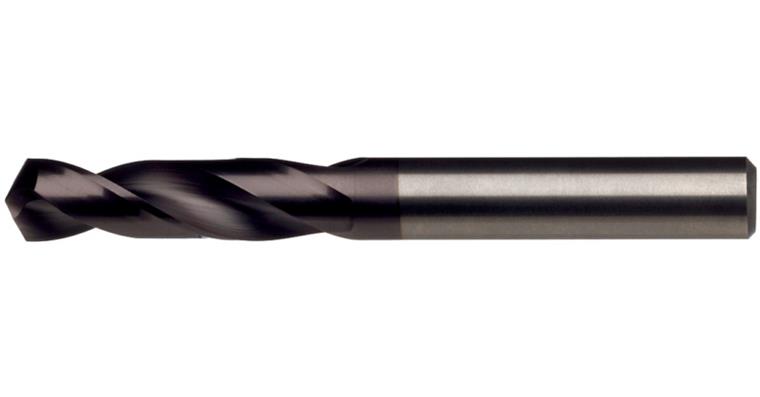

ATORN solid carbide twist drill bit TiAlN type N 3xD 2.8 mm x 46 mm 118°

ATORN solid carbide twist drill bit TiAlN type N 3xD 2.8 mm x 46 mm 118°

ATORN solid carbide twist drill bit TiAlN type N 3xD 2.8 mm x 46 mm 118°
Item no: 1011033 128

Online price:

Available for immediate delivery

Application
Standard geometry for use up to a strength of 1300 N/mm².

Execution
Standard solid carbide tool with universal precision grinding

Advantage
  • excellent all-round properties and precise cutting pattern
  • universal use: minimises tool costs and improves flexibility
  • Cutting edge preparation minimises micro-fractures on the cutter
  • TiAlN coating for up to 50% longer service life, dry processing possible in steel


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Type: N
Tool holding device: HA parallel shank
Cutting edge diameter: 2,8 mm
Chip flute length: 16 mm
Length: 46 mm
f steel 1000: 0,08 mm/r
DIN: 1897

ATORN-No.: 10472910

EAN no.: 4050293037982

Product Datasheet Datasheet cutting values
