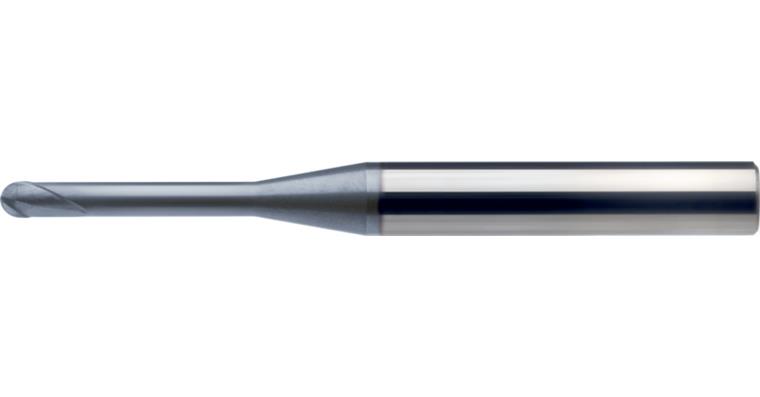

ATORN SC mini radius cutter, diameter 0.6 x 0.5 x 6.0 x 50 mm, HA shaft

ATORN SC mini radius cutter, diameter 0.6 x 0.5 x 6.0 x 50 mm, HA shaft

ATORN SC mini radius cutter, diameter 0.6 x 0.5 x 6.0 x 50 mm, HA shaft
Item no: 1016402 152

Online price:

Available in 8-10 working days.

Application
High-precision miniature radius cutter with long neck for process-reliable machining of stainless steels and alloys of titanium, nickel and cobalt.

Execution
  • Ultrafine grain, cemented carbide
  • Tolerance: < Ø 0.7 mm = 0/-0.012 mm and < Ø 4 mm = 0/-0.020 mm
  • Radius tolerance = 0/-0.010 mm
  • HA straight shank
  • With clearance
  • High-performance ULTRA MS coating
  • Defined cutting edge rounding

Advantage
  • Broad range of clearance lengths
  • Optimum chip removal and temperature resistance
  • Maximum service life through ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 0,6 mm
Cutting edge length: 0,5 mm
Clearance length: 6 mm
Length: 50 mm
Clearance diameter: 0,55 mm
Shank diameter: 4 mm
fz stainless steel: 0,005 mm

ATORN-No.: 11861284

EAN no.: 4050293362084

Product Datasheet Datasheet cutting values
