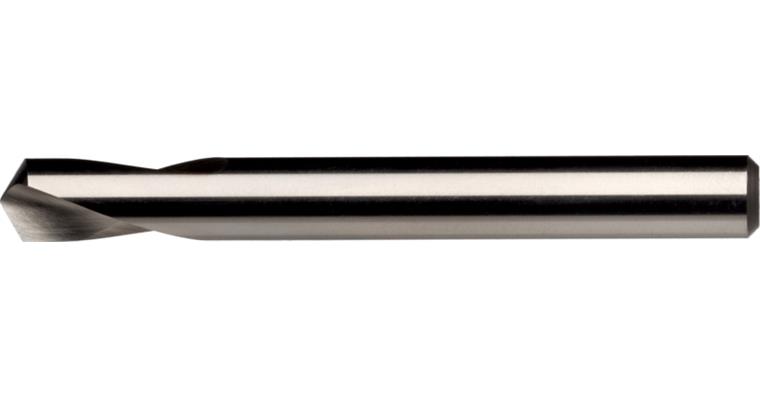

ATORN NC spotting drill HSSE 120°, uncoated, 12.0 mm x 102 mm HA

ATORN NC spotting drill HSSE 120°, uncoated, 12.0 mm x 102 mm HA

ATORN NC spotting drill HSSE 120°, uncoated, 12.0 mm x 102 mm HA
Item no: 1010890 312

Online price:

Still in stock: 4

Application
For NC spot drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding

Advantage
  • Kurze Bauform mit exaktem Spitzenanschliff und Querschneide, sorgen für ein formgenaues und prozesssicheres Anbohren
  • short design with precise point geometry and chisel edge ensure form-true and reliable spot drilling
  • 120° NC spotting drill ensures precise centring (deflection of drill is minimised)


Brand: ATORN
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal | Special alloy
Angle of the tip: 120 Degree
Cutting material: HSSE
Surface: Uncoated
Tool holding device: HA parallel shank
Cutting edge diameter: 12 mm
Cutting edge length: 30 mm
Length: 102 mm
f steel 1000: 0,08 mm/r

ATORN-No.: 10440106

EAN no.: 4050293012583

Product Datasheet
