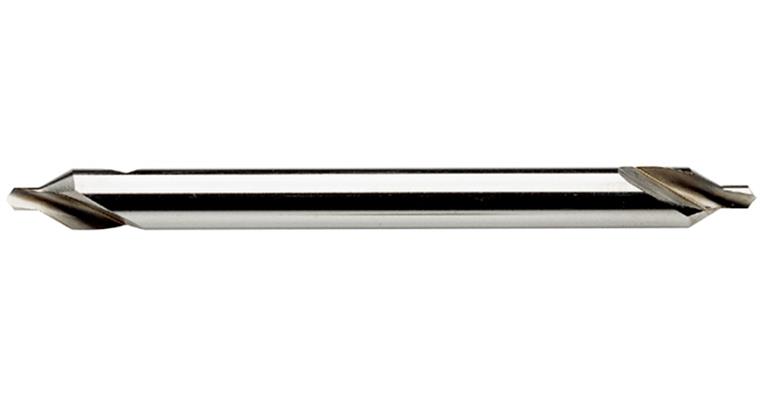

ATORN centre drill bit HSSE extra-long 1.6 mm x 5 mm x 120 mm

ATORN centre drill bit HSSE extra-long 1.6 mm x 5 mm x 120 mm

ATORN centre drill bit HSSE extra-long 1.6 mm x 5 mm x 120 mm
Item no: 1010870 107

Online price:

Available for immediate delivery

Application
For centre drilling on conventional and CNC machines on low-lying or difficult-to-access components.

Execution
spiral-fluted design with relief grinding

Advantage
  • Extra length permits precise drilling, even on difficult-to-access components
  • Radial relief ensures optimum chip breaking

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSSE
Surface: Uncoated
Form: A
Tool holding device: HA parallel shank
Cutting edge diameter: 1,6 mm
Shank diameter: 5,00 mm
Min./max cutting edge length: 2-2.4 mm
Length: 120 mm
f steel 700: 0,03 mm/r
DIN: 333

ATORN-No.: 10440090

EAN no.: 4050293012439

Product Datasheet Datasheet cutting values
