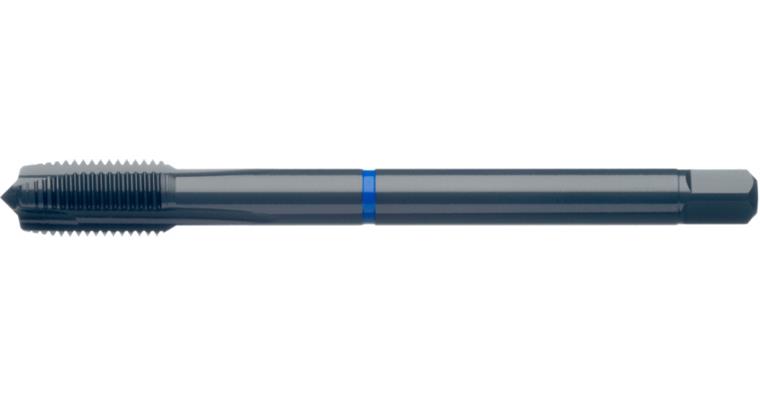

ATORN screw tap HSSE B DIN 371 0° UNF 6 2B D 3xD CNC P

ATORN screw tap HSSE B DIN 371 0° UNF 6 2B D 3xD CNC P

ATORN screw tap HSSE B DIN 371 0° UNF 6 2B D 3xD CNC P
Item no: 1014575 102

Online price:

Available in 6-8 working days.

Application
For producing UNF (Unified Fine) threads on CNC machines or conventional machines in through holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
With reinforced shank

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-quality, torsion-resistant HSSE cutting material and cutting edge finish for very high service life requirements.
  • Universal use for maximum flexibility in use.


Brand: ATORN
Thread type: UNF
Thread type x nominal diameter in inches: UNF 6 in
Tolerance of screw taps (Tol.): 2B
Number of thread starts per inch: 40
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 56 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 0°
DIN: 371 similar
Shank diameter: 2,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,95 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 2,1 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10483009

EAN no.: 4050293581577

Product Datasheet Datasheet cutting values
