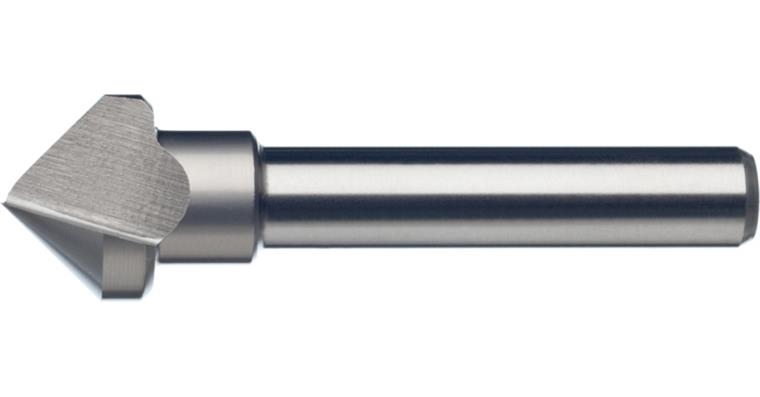

ATORN countersink, 90°, HSSE, single-bld cutter, T=1, 2.0-25.0 mm, 80 x 10 mm HA

ATORN countersink, 90°, HSSE, single-bld cutter, T=1, 2.0-25.0 mm, 80 x 10 mm HA

ATORN countersink, 90°, HSSE, single-bld cutter, T=1, 2.0-25.0 mm, 80 x 10 mm HA
Item no: 1003120 028

Online price:

Available in 6-8 working days.

Application
For producing 90° counterbores up to 1300 N/mm².

Execution
profile-ground single-edge countersink with radial relief

Advantage
  • radial relief ensures optimum chip breaking
  • deep and wide flute provides optimum chip removal
  • special geometry ensures vibration-free and accurate countersinking with high finish quality

Notes
The grooves are milled from diameter of 15

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 90 Degree
Cutting material: HSSE
Surface: Uncoated
Number of cutting edges: 1 PCS
Tool holding device: HA parallel shank
Spot-facer diameter: 25,0 mm
Min./max. cutting edge diameter: 2-25 mm
Shank diameter: 10 mm
Length: 80 mm
f steel 1000: 0,18 mm/r

ATORN-No.: 10642304

EAN no.: 4050293346305

Product Datasheet Datasheet cutting values
