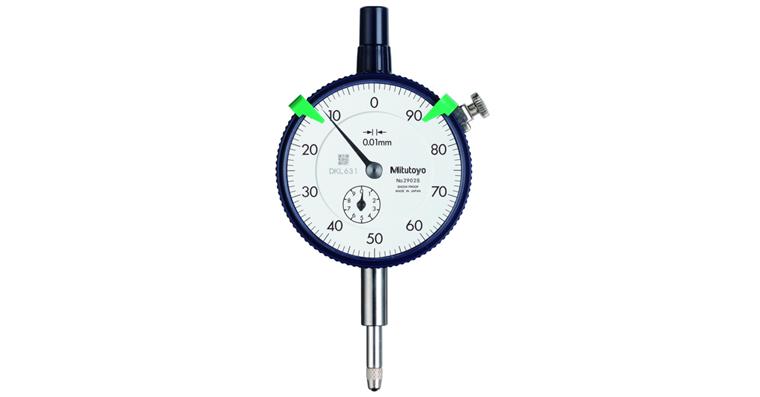

Messuhr metrisch 10 mm, 0,01mm, mit flacher Rückwand, Skalent. gegen Uhrzeigers.

Messuhr metrisch 10 mm, 0,01mm, mit flacher Rückwand, Skalent. gegen Uhrzeigers.

1001359088 Messuhr metrisch 10 mm, 0,01mm, mit flacher Rückwand, Skalent. gegen Uhrzeigers.
Item no: 1001359 088

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Standard dial gauge with outer ring, dia. 57 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm
  • The design prevents the ingress of liquids thanks to the lack of through-bores, the secure seal between the outer ring and glass and the O-ring.


Brand: MITUTOYO
Length measuring range: 10 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 57 mm
Shank diameter: 8 mm
Min./max. measurement force: 0.4-1.4 N
Shaft length: 16,9 mm
Error limit: 0,013 mm
Digit increment: 0,01 mm
Calibration Group: C
Type: flache Rückwand, Skalenteilung gegen Uhrzeigersinn

Manufacturer part no.: 2902AB

Product Datasheet
