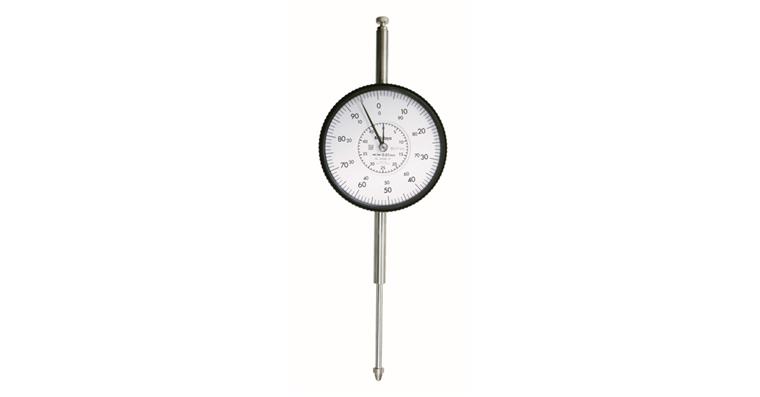

Messuhr metrisch 50 mm, 0,01mm, mit flacher Rückwand, edelsteingelagert, Stoßs.

Messuhr metrisch 50 mm, 0,01mm, mit flacher Rückwand, edelsteingelagert, Stoßs.

Messuhr metrisch 50 mm, 0,01mm, mit flacher Rückwand, edelsteingelagert, Stoßs.
Item no: 1001358 845

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Standard dial gauge with large outer ring, dia. 78 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm


Brand: MITUTOYO
Length measuring range: 50 mm
Type: flache Rückwand, edelsteingelagert, Stoßschutz
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 78 mm
Error limit: 0,030 mm
Shank diameter: 8 mm
Shock protection: Yes
Min./max. measurement force: 0.4-3 N
Shaft length: 43,9 mm
Calibration Group: C
Scale value: 0,01 mm

Manufacturer part no.: 3058AB-19

Product Datasheet
