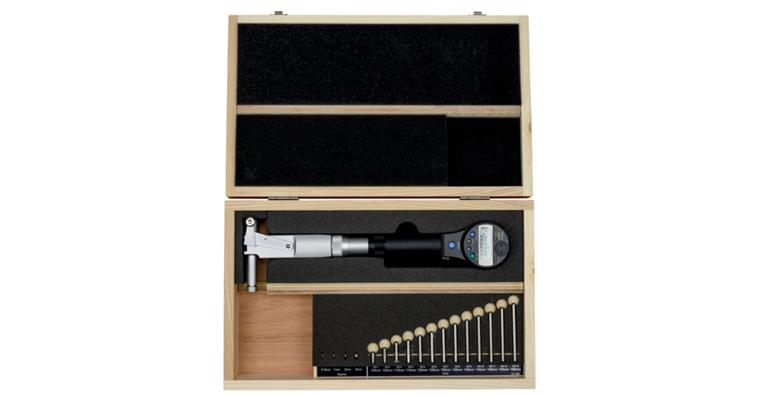

Digital internal precision measuring instrument 100-160 mm IP53

Digital internal precision measuring instrument 100-160 mm IP53

Digital internal precision measuring instrument 100-160 mm IP53
Item no: 1001352 368

Online price:

Available in 11-13 working days.

Application
For measuring drill hole diameter to maximum depth of 2 metres

Execution
  • With the precision drill hole measuring instrument, the diameter of deep holes can be measured without any loss of accuracy
  • Store and retrieve up to three preset values and upper/lower tolerance values at the touch of a button.
  • The GO/±NG assessment can be adjusted
  • Up to four extension rods (250 or 500 mm) can be used
  • Contact point distance 1.2 mm
  • Measuring frequency approx. 50 measurements/sec
  • The indicator can be rotated through 320° and inclined by 90°, the handle can be rotated through 320°


Brand: MITUTOYO
Min./max. diameter of measuring range: 100-160 mm
Number of measurement heads: 13 PCS
Measuring depth: 250 mm
Repeat accuracy: 0,002 mm
Functions: On/Off | Absolute function | Hold-function (AE lock) | Preset function | Tolerance value entry
Data transmission type: USB
IP protection class: IP 53
Calibration Group: T

Manufacturer part no.: 511-502

Product Datasheet
