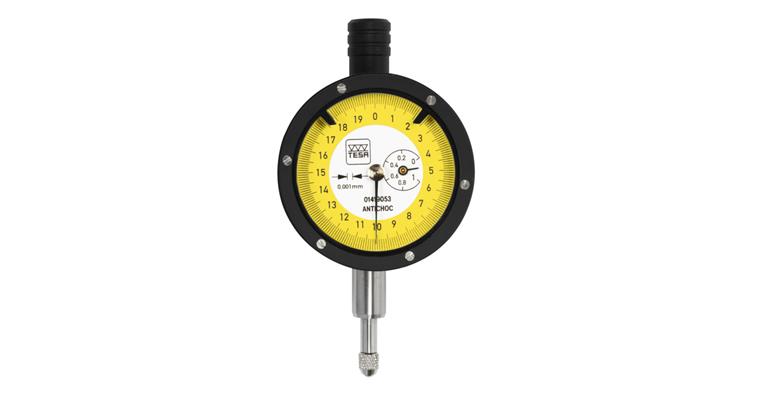

Analoge Messuhr, 1mm, 0,001 mm, Ø 40 mm, IP 40

Item no: 1001336 720

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution

Housing made of metal, clamping shank and measuring pins made of stainless steel
Thread: M2.5 x 0.45 mm
Rotating dial
Adjustable tolerance marks

Delivery
1x dial gauge with gauge slide dia. 3.175 mm, mounted
1x declaration of conformity

Brand: TESA TECHNOLOGY
Length measuring range: 1 mm
Type: Skale 0-5-10
Digit increment: 0,001 mm
Measurement travel of one pointer revolution: 0,2 mm
Outer diameter: 44,5 mm
Error limit: 0,005 mm
Shank diameter: 8 mm
IP protection class: IP 40
Shock protection: Yes
Rotating housing: Yes
Min./max. measurement force: 1.2-0.8 N
Calibration Group: C
Scale value: 0,001 mm

Manufacturer part no.: 01419053

EAN no.: 7630041151831

Product Datasheet
