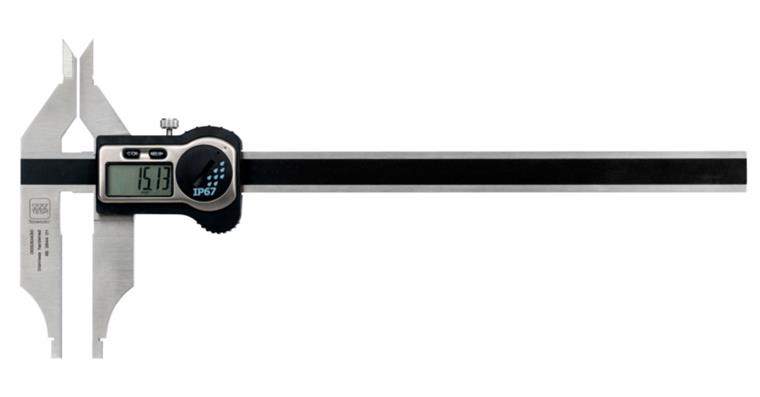

TWIN-CAL IP67 dig. workshop callipers 0-250 mm, w. knife-edge jaws, DO

TWIN-CAL IP67 dig. workshop callipers 0-250 mm, w. knife-edge jaws, DO

TWIN-CAL IP67 dig. workshop callipers 0-250 mm, w. knife-edge jaws, DO
Item no: 1001335 957

Online price:

Still in stock: 6

Application
For measuring external and internal dimensions.

Execution
  • Easy to read with large, high-contrast display
  • Robust construction for durability and long-term reliability of results
  • Locking screw at the top
  • Long battery life avoids frequent battery changes
  • Send values to the computer through the TLC connection (cable or wireless)
  • Fonction ABS
  • Functions: Sleep mode after 10 min, ABS or DIFF mode, low battery indicator, mm/inch, data transfer cable

Advantage
  • With "soft touch" coating for comfort during use
  • High degree of protection against dust and liquids (even with cap for sending data attached)

Delivery
1x case
1x 3 V battery (type CR 2032)


Brand: TESA TECHNOLOGY
Min./max. length measuring range: 0-250 mm
Digit increment: 0,01 mm
Length of jaw: 80 mm
Inner measurement scales: 54 mm
Data transmission type: Bluetooth | Cable
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-10 in
IP protection class: IP 67
Interface: USB 2.0 type A | Bluetooth | Digimatic
Length of cross tips (Länge der Messerspitzen): 54 mm
Error limit: 0,04 mm
Digit height: 11 mm
Type of locating: With locking screw
ISO: 13385-1
Calibration Group: A

Manufacturer part no.: 00530430

EAN no.: 7630041106404

Product Datasheet
