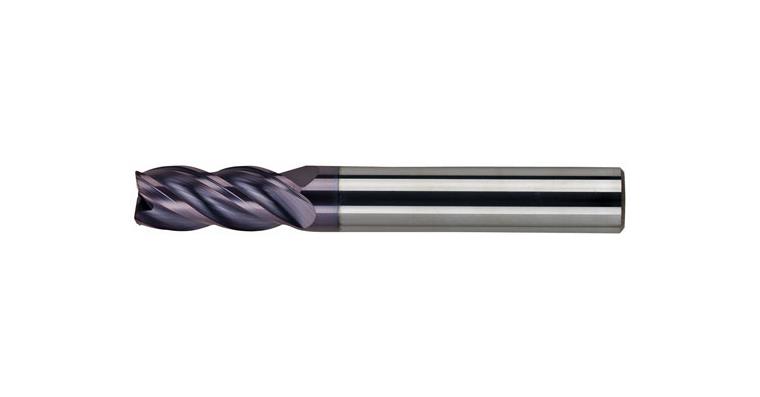

SC end mill 35°/38° DIN 6535HA Z 4 TiAlN dia. 16 mm without clamping surface

SC end mill 35°/38° DIN 6535HA Z 4 TiAlN dia. 16 mm without clamping surface

SC end mill 35°/38° DIN 6535HA Z 4 TiAlN dia. 16 mm without clamping surface
Item no: 1098049 108

Online price:

Available for immediate delivery

Application
For universal use up to 1300 N/mm²

Execution
With centre cutting


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 16 mm
Cutting edge length: 32 mm
Length: 92 mm
Shank diameter: 16 mm
Edge protection chamfer length: 0,40 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: Classic
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,065 mm
