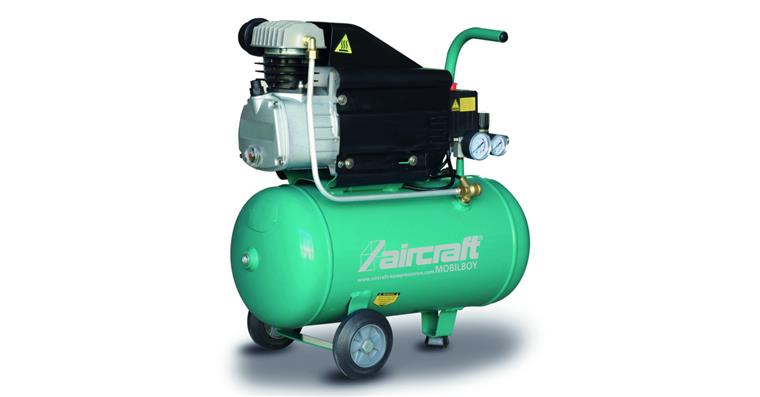

Compressor MOBILBOY 241/24 AC

Compressor MOBILBOY 241/24 AC

Compressor MOBILBOY 241/24 AC
Item no: 1092405 203

Online price:

sold out

Execution
  • Unit with high-performance oil lubrication system for efficient lubrication with optimal sealing
  • Pressure regulator for stepless adjustment of the desired working pressure
  • Compressed air released via quick-action coupling that can be operated with one hand
  • Fully automatic on/off via pressure switch
  • Pressure gauges display both the container and operating pressure
  • Electric motor equipped with circuit breaker
  • Powder-coated compressed air container
  • Two rear plastic wheels


Brand: AIRCRAFT
Intake air capacity: 190 l/min
Tank capacity: 24 l
Power input: 1,3 kW
Sound-pressure level: 96 dB
Length x width x height: 600 x 290 x 615 mm
Weight: 24 kg
Type: MOBILBOY 241/24 AC
Delivery quantity effective at 80% max. pressure: 120 l/min
Frequency: 50 Hz
Max. pressure: 8 bar
Nominal voltage: 230 V
Number of cylinders: 1 PCS
Power output: 1,1 kW
Rotation speed: 2850 rpm

Manufacturer part no.: 2004242

Product Datasheet
