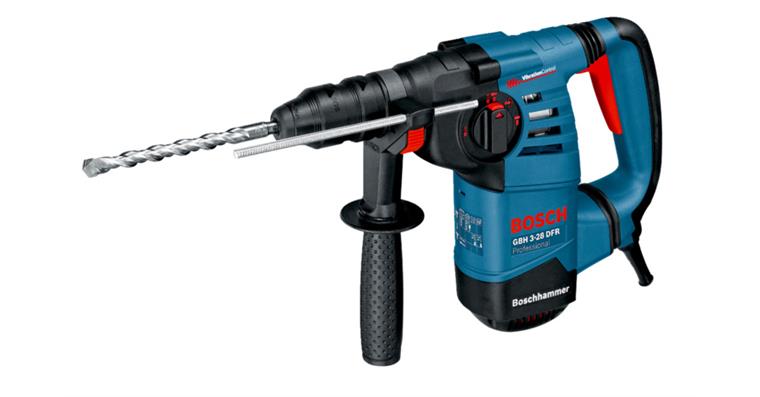

GBH 3-28 DFR SDS-plus/SSBF rotary hammer drill 800 watts 3.1 J

GBH 3-28 DFR SDS-plus/SSBF rotary hammer drill 800 watts 3.1 J

GBH 3-28 DFR SDS-plus/SSBF rotary hammer drill 800 watts 3.1 J
Video
Item no: 1090090 300

Online price:

Available in 6-8 working days.

Application
For drilling and chiselling with pneumatic impact mechanism in stone and concrete.

Execution
  • Overload coupling
  • Vibration Control vibration damping
  • Stepless speed control
  • Ball joint to prevent cable breakage
  • Rotatable brush plate for equal force in clockwise and anti-clockwise rotation
  • rotation stop for chipping

Advantage
  • The clutch claws are unlocked and the torque is minimised to prevent abrupt blocking of the tool
  • Presse-étoupe à bille pour éviter toute rupture de câble

Delivery
13 mm quick-action drill chuck, replacement SDS-plus drill chuck, additional handle, 210 mm depth stop, in L-BOXX


Brand: BOSCH
Model: GBH 3-28 DFR
Max. impact energy: 3,1 J
Max. impact rate: 4000 rpm
Min./max. impact rate: 0-4000 U/min(rpm)
Power input: 800 W
Max. recommended drilling diameter in concrete: 28 mm
Max. drilling diameter in wood: 30 mm
Max. drilling diameter in steel: 13 mm
Max. core drill bit diameter: 82 mm
Tool holding device: Suitable for SDS-plus / change drill chuck
Idle speed 1st gear min./max.: 0-900 U/min(rpm)
Weight: 3,6 kg
With rubber-coated handle: Yes
With electronic feedback: No
With soft start: No
With chisel function: Yes
With reverse switch off: No
With stroke stop: Yes
With restart protection: No
Idle speed 1st gear max.: 900 rpm
Idle speed 1st gear min.: 0 rpm
Included in delivery: - L-BOXX 136
- Additional handle
- Depth stop
- SDS-plus replacement chuck
- Quick-action drill chuck
Type: GBH 3-28 DFR

Manufacturer part no.: GBH 3-28 DFR

EAN no.: 3165140600675

Product Datasheet
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €

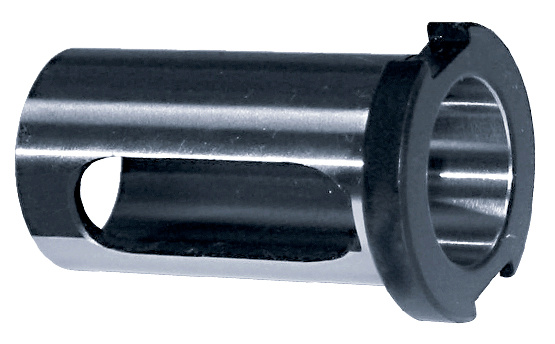

  • Reducing sleeve for tool holder shape E2, art. no. 21922, d1=25 mm, d=12mm
  •
    TESA-CAL IP67 digital pocket vernier callipers 0-150 mm without data output
  •
    ATORN inside micrometer set, analogue, 50-100 mm measuring range, in case
  •
    ATORN extension for pipe brushes, 1000 mm with M 6 threads on both ends
  •
    DUSPOL expert two-pole voltage and continuity tester 12-1,000 V AC/DC
  •

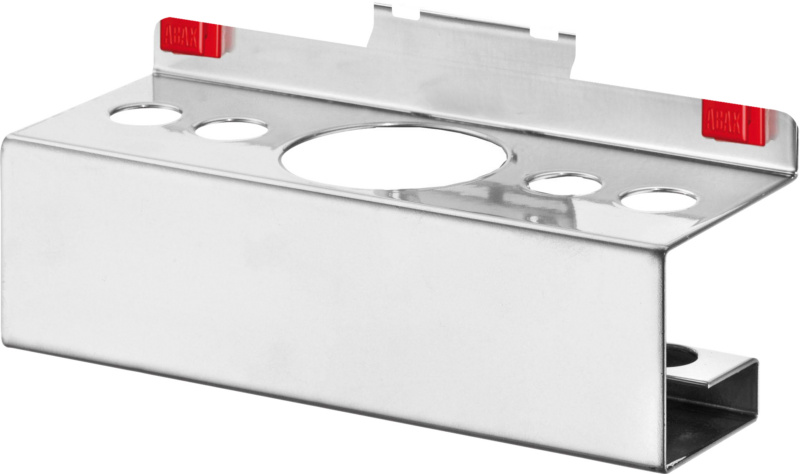

    Combi. holder B 176mm for 4 pins dia. 17mm + 1 spray bottle dia. 52mm alu.-col.
  •
