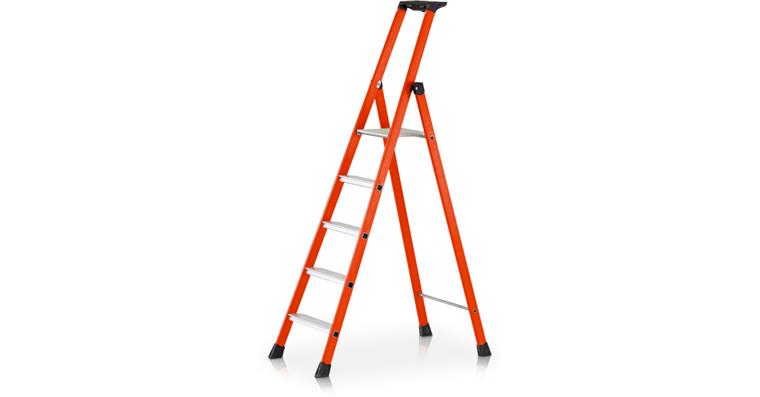

GFK Mischbau-Stufen-Stehleiter 6 Stufen EFAmix S Leiternlänge 2,15 m einseitig

GFK Mischbau-Stufen-Stehleiter 6 Stufen EFAmix S Leiternlänge 2,15 m einseitig

GFK Mischbau-Stufen-Stehleiter 6 Stufen EFAmix S Leiternlänge 2,15 m einseitig
Item no: 1085885 104

Online price:

Availability on demand

Application
Specially designed ladder for all work in electrical environments

Execution
  • For work on electrical installations due to the insulating rails made of fibreglass-reinforced plastic
  • 80 mm deep light metal steps with non-slip ribbing
  • Safety platform (250 x 250 mm)
  • Safe storage of accessories and tools in the plastic storage tray
  • Only 88 mm deep when folded
  • Steps made from aluminium extruded section profiles

Advantage
Meets the requirements of the high-voltage test for ladders made of insulating material in accordance with DIN EN 61-478

Notes
Compliant with standard EN 131 professional

Brand: ZARGES
Number of steps (including platform): 1 x 6
Working height: 3,35 m
Length: 2,15 m
Platform height: 1,37 m
Weight: 9,0 kg
Max. load capacity: 150 kg
Step depth: 80 mm
Beam height of rising part: 50 mm
Beam height of support part: 50 mm
Material: Aluminium-plastic
With storage tray: Yes
Folding: Yes
EN standard: 131

Manufacturer part no.: 40434

EAN no.: 4003866404346

Product Datasheet
