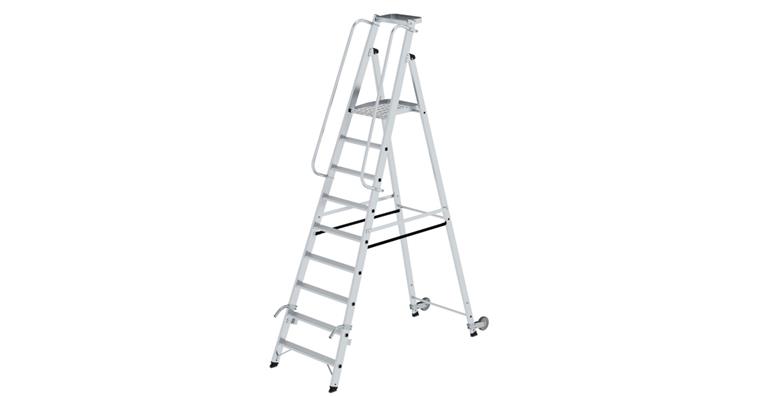

Platform ladder 9 steps including platform platform height 2.07 m

Platform ladder 9 steps including platform platform height 2.07 m

Platform ladder 9 steps including platform platform height 2.07 m
Item no: 1085882 106

Online price:

Availability on demand

Execution
  • Robust, rectangular tube side rails
  • Ribbed rungs 80 mm deep
  • Large trapezoidal platform (400/360 x 425 mm)
  • 4x flanged rung/side rail connection
  • Ladder joint safe-cap
  • Nivello® ladder feet with patented two-axis tilting technology
  • Handy tray (350 x 200 mm)
  • Rigid connection thanks to detachable metal struts on both sides (supplied loose)
  • Two high-strength, Perlon anti-splay straps
  • Step spacing 235 mm, ladder incline 70°

Advantage
  • Two lifting castors dia. 125 mm and handles for easy movement from place to place
  • Tapered side rail guide for secure footing
  • Two handrails for safe ascent and descent (supplied loose)


Brand: MUNK GUENZBURGER STEIGTECHNIK
Podium height: 2,07 m
Number of steps (including platform): 1 x 9
Weight: 20,1 kg
Podium surface: 400/360 x 425 mm
Accessibility: One-sided
Material: Aluminium
With Safer Step technology: No
Load-carrying capacity: 150 kg
Folding: No
On castors: Yes
Wheel diameter: 125 mm
Podium depth: 425 mm
Podium width: 400/360 mm
Height: 2,82 m
Number of fixed rollers: 2 PCS
With wheel lock: No

Manufacturer part no.: 51089

Product Datasheet
