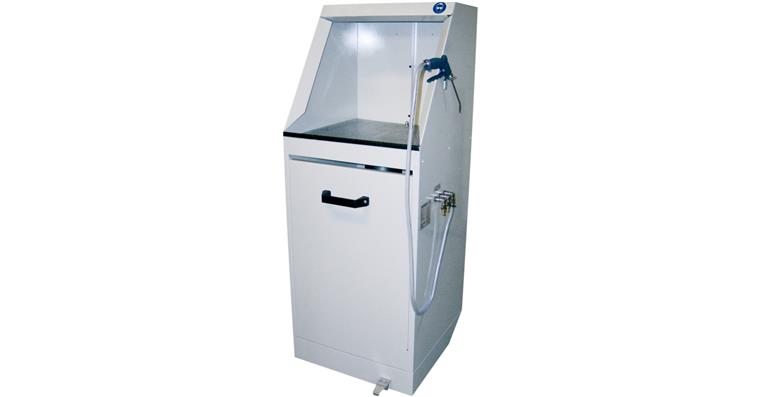

Air cleaning station 1300X500X850mm RAL 7035

Air cleaning station 1300X500X850mm RAL 7035

Air cleaning station 1300X500X850mm RAL 7035
Item no: 1085620 101

Online price:

Availability on demand

Application
Chips and droplets are vacuumed from the interior of the container. In this way, the Air Cleaning Station ensures keeps floors and air clean. Ideal for any workplace where workpieces and tools must be kept clean.

Execution
  • Stable and sturdy sheet steel housing with built-in injection system (operated with compressed air) and collection container
  • The pneumatic gun and the injection system are actuated with a foot valve attached on the front side, so only as much compressed air as required for the cleaning process is consumed
  • The parts to be cleaned are simply blown off on the grating using a compressed-air gun
  • Portable like a hand truck with two wheels on the rear side
  • The injector system extracts all contamination downwards into a collection container which must be emptied on a regular basis

Advantage
  • Swarf, oil and coolant residues are no longer simply blown out into the premises, but are purposely sucked into the collecting container provided.
  • No emulsion or oil vapour in the air - no dust and no chips flying around - no contamination of the workplace
  • Rapid connection to existing compressed-air system
  • Can be installed directly in or near machines so that the processed workpieces and parts can be immediately blown off

Delivery
Fully ready for use with connection for pneumatic quick-action coupling (plug nipple DN 7.2), incl. pneumatic gun and hose


Brand: ---
Clear opening width: 425 mm
Height x width x depth: 1300 x 500 x 500 mm
Clear opening depth: 480 mm
Height: 1300 mm
Width: 500 mm
Depth: 500 mm
Working height: 850 mm
Load-carrying capacity of grating: 50 kg
Min./max. operating pressure: 5-10 bar
Min./max. sound-pressure-level: 60-70 dB
Colour: Light grey RAL 7035
Surface: Powder-coated
Material: Sheet steel
Max. operating pressure: 10 bar
Max. sound-pressure-level: 70 dB
Min. operating pressure: 5 bar
Min. sound-pressure-level: 60 dB
