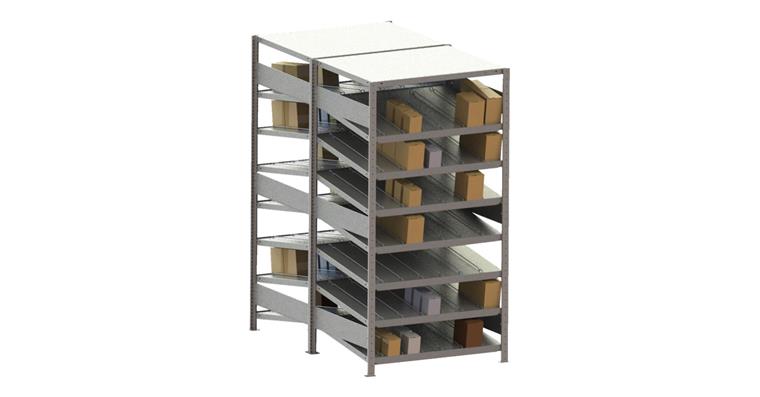

Slanting rack basic bay dbl-sided with 8 shelves, zinc-plated 2000x1000x500 mm

Slanting rack basic bay dbl-sided with 8 shelves, zinc-plated 2000x1000x500 mm

Slanting rack basic bay dbl-sided with 8 shelves, zinc-plated 2000x1000x500 mm
Item no: 1085480 201

Online price:

Availability on demand

Execution
  • META CLIP S3 shelving system with unassembled frames, is particularly stable with a high load-bearing capacity, load capacity per bay: 200 kg per level
  • Particularly suitable for boxed goods such as packets of screws or for storing small parts in small storage bins
  • Quick plugin assembly without tools
  • 6 compartment dividers per slanted shelf
  • Channels can be fitted in increments of 50 mm depending on the size of the stored goods (without lateral protection against falling)
  • Shelves height-adjustable every 25 mm
  • Incl. cover shelf for dust protection and additional storage space
  • Stored goods such as boxes slide automatically down the 14° incline to be removed
  • Planning dimensions basic shelf two rows: Nominal length + 56 mm, nominal depth + 75 mm, planning dimensions add-on shelf double row: Nominal length + 6 mm, nominal depth + 75 mm

Advantage
  • Optimum stock monitoring as it is immediately obvious where extra supplies are required
  • Improved access to stored goods

Notes
Shelves with a height/depth ratio greater than or equal to 5: 1 must be secured against tipping (anchored to the wall or floor). The loads indicated per shelf and per bay apply to evenly distributed loads. Shelf load specifications apply to rack rows with 3 or more bays.

Brand: META
Load-carrying capacity per shelf: 200 kg
Number of shelves: 8 PCS
Nominal depth: 500 mm
Load-carrying capacity per field: 1800 kg
Nominal length: 1000 mm
Height: 2000 mm
Depth: 575 mm
With compartment divider: Yes
Grid dimension: 25 mm
Type of assembly: To insert
Material: Steel
Surface: Zinc plated
Length: 1056 mm

Manufacturer part no.: 20096155

EAN no.: 4026212267518

Product Datasheet
