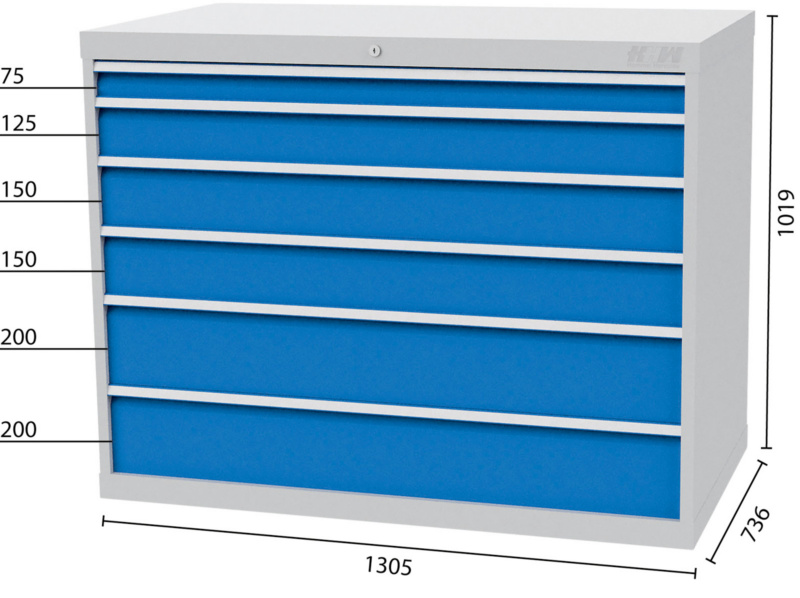

Tool cabinet 1305x736x1019mm 6 drawers 1x75 1x125 2x150 2x200 mm 7035/5012

Tool cabinet 1305x736x1019mm 6 drawers 1x75 1x125 2x150 2x200 mm 7035/5012

Tool cabinet 1305x736x1019mm 6 drawers 1x75 1x125 2x150 2x200 mm 7035/5012
Item no: 1084386 102

Online price:

Availability on demand

Execution
  • Welded sheet steel construction
  • Powder-coated housing, zinc-plated drawers
  • Central locking
  • Drawer panel height 75 mm: Load capacity: 100 kg
  • Drawer panel height from 100 mm: Load capacity: 180 kg
  • Drawer guides are ball-bearing-mounted, single drawer lock
  • Individual drawer locking possible
  • Handle strips with inserted labelling strips

Notes
Load values apply to evenly distributed loads.
For drawer fitting assortments, see art. no. 1084389.
For cabinet housing, see art. no. 1084387.
For drawers, see art. no. 1084388.

Brand: BEDRUNKA HIRTH
Cabinet colour: Light grey RAL 7035
Colour of front: Light blue RAL 5012
Height: 1019 mm
Width: 1305 mm
Depth: 736 mm
Number of drawers: 6 PCS
Pullout type: Full extension
With single pull-out safety brake: Yes
With SOFT-CLOSE closing function: No
Central locking: Yes
Material: Sheet steel
Surface: Powder-coated
Drawer width (inner dimension): 1200 mm
Drawer depth (inner dimension): 600 mm
Drawer design: 2 drawers, W 1200 x D 600 x H 150 mm, 180 kg load capacity | 2 drawers, W 1200 x D 600 x H 200 mm, 180 kg load capacity | 1 drawer, W 1200 x D 600 x H 75 mm, 100 kg load capacity | 1 drawer, W 1200 x D 600 x H 125 mm, 180 kg load capacity
Drawer with slots: Yes
Perforated drawer base: No
Lock type: Cylinder lock

Manufacturer part no.: 1300/1122V18 7035/5012

EAN no.: 4024496119837

Product Datasheet
