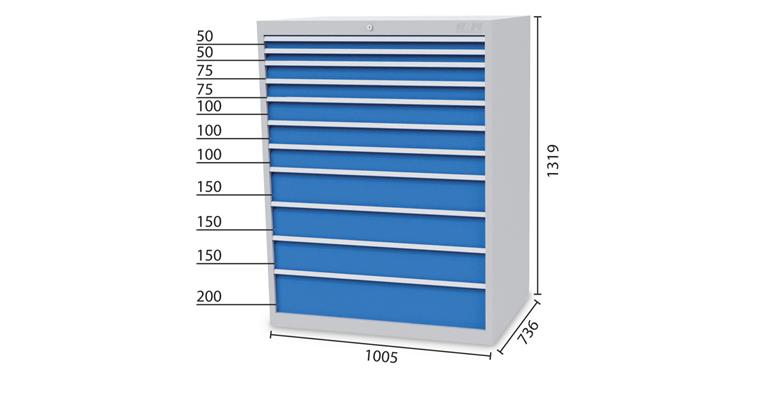

Drawer cabinet 11 drawers 5012 2x50 2x75 3x100 3x150 1x200mm 1005x736x1319

Drawer cabinet 11 drawers 5012 2x50 2x75 3x100 3x150 1x200mm 1005x736x1319

Drawer cabinet 11 drawers 5012 2x50 2x75 3x100 3x150 1x200mm 1005x736x1319
Item no: 1084342 104

Online price:

Availability on demand

Execution
  • Welded sheet steel construction
  • Powder-coated housing, zinc-plated drawers
  • Central locking
  • Drawer panel height 50 mm: Load capacity: 70 kg
  • Drawer panel height from 75 mm: Load capacity: 100 kg
  • Drawer guides are ball-bearing-mounted, single drawer lock
  • Individual drawer locking possible
  • Handle strips with inserted labelling strips

Notes
Load values apply to evenly distributed loads.
For drawer fitting assortments, see art. no. 1084346-1084377.
For accessories, see art. no. 1084370-1084385.
For cabinet housing, see art. no. 1084420.
For drawers, see art. no. 1084426-1084428.

Brand: BEDRUNKA HIRTH
Cabinet colour: Light grey RAL 7035
Colour of front: Light blue RAL 5012
Height: 1319 mm
Width: 1005 mm
Depth: 736 mm
Number of drawers: 11 PCS
Pullout type: Full extension
With single pull-out safety brake: Yes
With SOFT-CLOSE closing function: No
Central locking: Yes
Material: Sheet steel
Surface: Powder-coated
Drawer width (inner dimension): 900 mm
Drawer depth (inner dimension): 600 mm
Drawer design: 2 drawers, W 900 x D 600 x H 50 mm, 70 kg load capacity | 2 drawers, W 900 x D 600 x H 75 mm, 100 kg load capacity | 3 drawers, W 900 x D 600 x H 100 mm, 100 kg load capacity | 3 drawers, W 900 x D 600 x H 150 mm, 100 kg load capacity | 1 drawer, W 900 x D 600 x H 200 mm, 100 kg load capacity
Drawer with slots: Yes
Perforated drawer base: No
Lock type: Cylinder lock

Manufacturer part no.: 113/22331V10 7035/5012

EAN no.: 4024496119219

Product Datasheet
