Mobile Werkbank B1200xT540xH820mm RAL7035/7016 4x Schublade, 1x Tür

Mobile Werkbank B1200xT540xH820mm RAL7035/7016 4x Schublade, 1x Tür

Mobile Werkbank B1200xT540xH820mm RAL7035/7016 4x Schublade, 1x Tür
Item no: 1081753 103

Online price:

Availability on demand

Execution
  • Left: 1x centrally lockable drawer cabinet with 4x roller-mounted drawers
  • Right: 1x lockable door
  • Beech multiplex worktop 1,200 x 540 x 25 mm
  • Ground surface
  • Welded steel tube construction 30 x 30 x 2 mm
  • 2x swivel castors and 2x fixed castors
  • Both swivel castors with wheel blocks
  • Hubs with roller bearings
  • Solid rubber tyres dia. 200 mm

Notes
For fitting assortments, see art. no. 1081756 101-103.

Brand: BEDRUNKA HIRTH
Number of drawers: 4 PCS
Drawer width (inner dimension): 450 mm
Load-carrying capacity per drawer: 75 kg
Drawer front height: 4 x 100 mm
Pullout type: Full extension
Drawer depth (inner dimension): 400 mm
Number of doors: 1 PCS
Working height: 820 mm
Plate length: 1200 mm
Plate depth: 540 mm
Material of worktop: Multiplex beech
Plate thickness: 25 mm
With single pull-out safety brake: No
With single-locking drawers: No
On castors: Yes
Moving device, can be lowered: No
With sliding handle: Yes
Load-carrying capacity: 500 kg
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Number of wheel adjusters: 2 PCS
Material of wheel: Solid rubber
Wheel diameter: 200 mm
Central locking: Yes
Lock type: Cylinder lock
Material: Sheet steel
Cabinet colour: Light grey RAL 7035
Colour of front: Anthracite grey RAL 7016
Surface: Powder-coated

Manufacturer part no.: 04.12.92 7035/7016

Product Datasheet
Additional articles

Please select a button.

Versions
loading
Keywords:

[Text nicht gefunden]

  • Fibre disc (active grinding) synthetic corundum grain 60 dia. 180 mm
  • High-performance fibre disc (combi grain) alumina-zirconia grain 36 dia. 125 mm
  • High-performance fibre disc (combi grain) alumina-zirconia grain 80 dia. 125 mm
  • High-performance fibre disc (combi grain) alumina-zirconia grain 36 dia. 180 mm
  • Mobile Werkbank B1200xT540xH820mm RAL7035/5012 4x Schublade, 1x Tür
  • Mobile Werkbank B1200xT540xH820mm RAL7035/5010 4x Schublade, 1x Tür
  • Mobile Werkbank B1200xT540xH820mm RAL7035/5012 8x Schublade
  • Mobile Werkbank B1200xT540xH820mm RAL7035/5010 8x Schublade
  • Mobile Werkbank B1200xT540xH820mm RAL7035/7016 8x Schublade
  • Suction tube 850 mm DN40

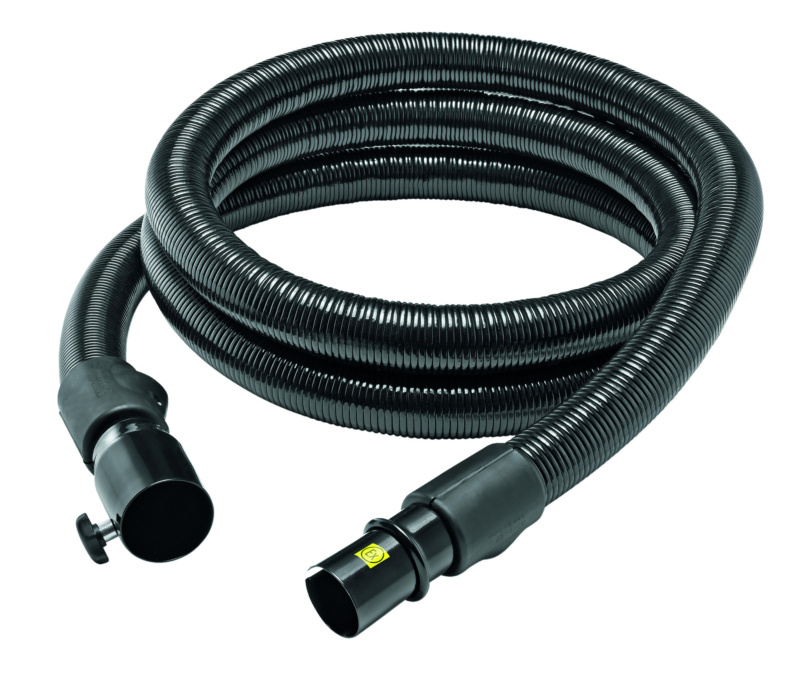

  • ME-PU DN40 hose 3 m
