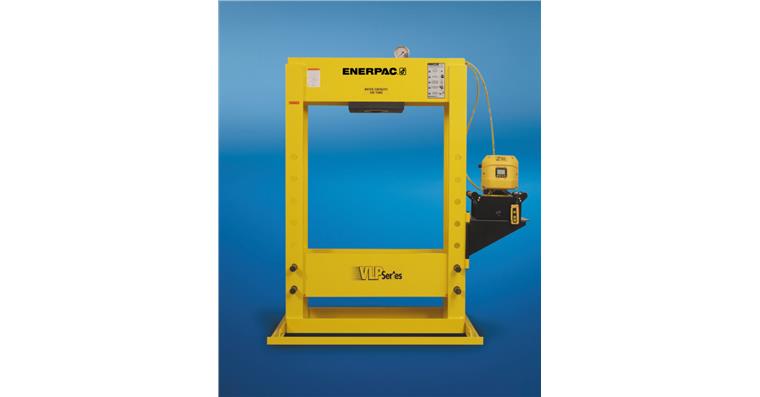

Workshop press VLP 1006 ZE3S 100 t return spring electric pump

Workshop press VLP 1006 ZE3S 100 t return spring electric pump

Workshop press VLP 1006 ZE3S 100 t return spring electric pump
Item no: 1080750 103

Online price:

Availability on demand

Execution
  • With double-acting cylinder
  • The lower yoke can be adjusted using the unique -Hydrajust- positioning device
  • The workshop press is equipped with an electric pump unit, hoses, manometer and manometer connecting piece

Advantage
  • The ENERPAC workshop presses are characterised by their strength and their longevity and offer excellent quality at an affordable price
  • Each of these presses is powerful enough to execute the required job with precision and force
  • These presses also set themselves apart through their ease of use
  • The optimised clear heights and table dimensions offer more than enough space for a wide range of applications

Notes
The frames of the workshop presses are designed exclusively for pressing, not for pulling. Pulling applications deliverable on request.

Brand: ENERPAC
Model: VLP 1006 ZES
Clear width: 1000 mm
Clear height: 989 mm
Return stroke design: Spring return
Height: 1879 mm
Lift height: 168 mm
Operating type: Automated
Max. compressive force: 933 kN

Manufacturer part no.: VLP 1006 ZE3S ALT

Product Datasheet
