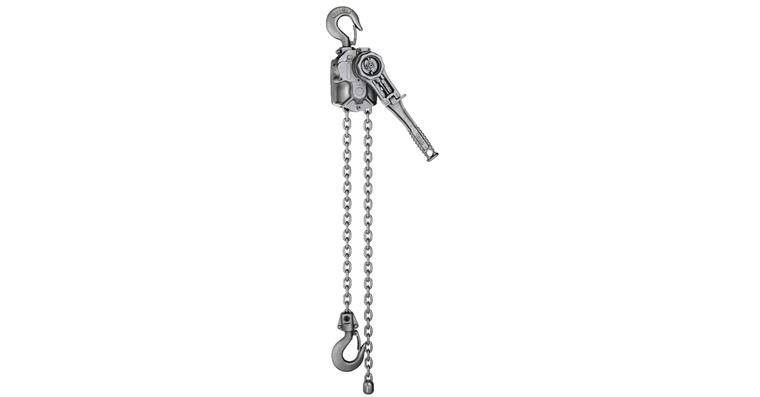

Multi-purpose lever hoist device AL, rnd stl ch. l/met. hsg lift 1.5m load 750kg

Multi-purpose lever hoist device AL, rnd stl ch. l/met. hsg lift 1.5m load 750kg

Multi-purpose lever hoist device AL, rnd stl ch. l/met. hsg lift 1.5m load 750kg
Item no: 1080166 101

Online price:

Available in 6-8 working days.

Application
For pulling, lifting and clamping by means of a hand lever.

Execution
  • With round steel chain, zinc-plated
  • Housing made of light metal
  • With particularly short hand lever
  • Free-chaining
  • Particularly light with maximum stability
  • Automatic threaded mechanical brake
  • Hand wheel for fast passage of the unloaded chain
  • Dustproof, closed housing
  • Standard lift 1.5 m
  • 1 load-bearing chain strand

Notes
Further multi-purpose lever hoist devices, 6 t and 10 t load capacity, deliverable on request.

Brand: YALE
Nominal chain thickness: 19,1 mm
Stroke force at nominal load: 16 daN
Stroke height per lever revolution: 30 mm
Chain diameter: 6,3 mm
Load-carrying capacity: 750 kg
Min. hook spacing: 315 mm
Length of lever: 300 mm
Lift height: 1500 mm
Number of load chains: 1 PCS
Weight: 6,4 kg
EN standard: 12195-1

Manufacturer part no.: N02041251

EAN no.: 4025092051194

Product Datasheet
