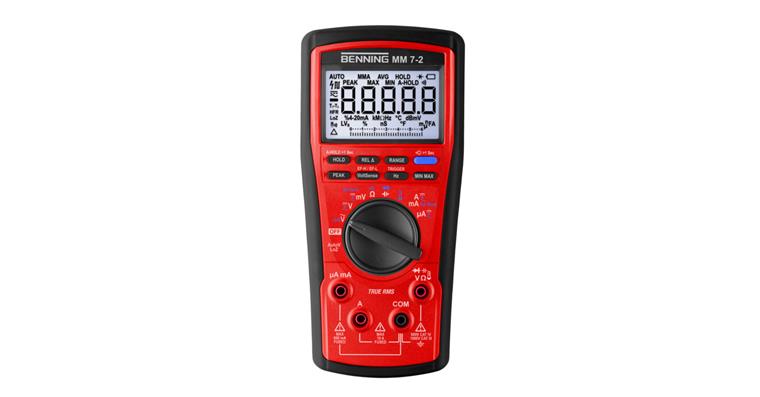

Digital-Multimeter MM 7-2

Digital-Multimeter MM 7-2

Digital-Multimeter MM 7-2
Item no: 1062395 111

Online price:

Still in stock: 8

Application
The true RMS digital multimeter in an ergonomic and rubber-moulded 2C housing can handle the most demanding measuring tasks in the electrical trade, industry, service and in heating, ventilation and air conditioning systems.

Execution
  • Measuring functions: True RMS voltage measurement (1,000 V), true RMS current measurement (10 A, 20 A for 30 s), resistance measurement (60 MΩ), capacitance measurement (10 mF), frequency measurement (mains and logic level), duty cycle measurement (%), 4-20 mA current loop measurement (%), temperature measurement (°C), rapid continuity testing (< 100 μs) with visual and acoustic display, diode testing, volt sensor function (non-contact and single-pole phase testing)
  • Performance features: Backlit digital display with 60,000 digit resolution, true RMS effective value measurement (AC and AC+DC) for measuring non-linear signals, MIN/MAX/AVG and rapid PEAK recording (250 μs), socket control (visual/acoustic) in the μA/mA and A range with warning in the event of incorrect operation (fuse protection), AutoV function for automatic AC/DC switching and measuring range selection, low-pass filter (HFR high-frequency suppression, 1,000 Hz) for measurements on pulse motor drives, display HOLD and auto HOLD with stable measured value, ergonomic 2-component housing for improved grip and impact resistance
  • Base accuracy: 0.03 %
  • Memory function: HOLD/A-HOLD, MIN/MAX/AVG, PEAK/REL

Delivery
1x BENNING MM 7-2 with integrated rubber protective frame for improved grip and impact resistance, stand on the back and measuring cable holder
1x protective case
1x high-quality silicone measurement cables with 2 mm gold-plated measuring tip and 4 mm screw-on measuring tip
1x wire temperature sensor
3x 1.5 V AAA/IEC LR03 batteries


Brand: BENNING
Min./max. test voltage (DC): 10 µV/DC-1000 V/DC
Min./max. test voltage (AC): 10 µV/AC-1000 V/AC
Min./max. alternating current of measuring range: 0.1 µA-10 A
Min./max. direct current of measuring range: 0.1 µA-10 A
Continuity testing: Yes
Diode testing: Yes
Min./max. electrical-resistance measuring range: 0.01 Ohm-60 MOhm
Min./max. frequency: 0.000001 / 5 kHz
Min./max. temperature measuring range: -200 to 1090 °C
Volt sensor: Yes
Measuring procedure: TRUE RMS
Overvoltage protection category: CAT III/1000 V | CAT IV/600 V
Max. direct current of measuring range: 10 A
Max. frequency: 5 kHz
Min. direct current of measuring range: 0,1 µA
Min. frequency: 0,001 Hz
Max. alternating current of measuring range: 10 A
Max. alternating voltage of measuring range: 1000 V/AC
Max. capacitor capacity: 10 mF
Max. test voltage (AC): 1000 V/AC
Max. test voltage (DC): 1000 V/DC
Min. alternating current of measuring range: 0,1 µA
Min. alternating voltage of measuring range: 10 µV/AC
Min. capacitor capacity: 0,01 nF
Min. test voltage (AC): 10 µV/AC
Min. test voltage (DC): 10 µV/DC
Min./max. alternating voltage of measuring range: 10-1000 V/AC

Manufacturer part no.: 044690

EAN no.: 4014651446908

Product Datasheet
