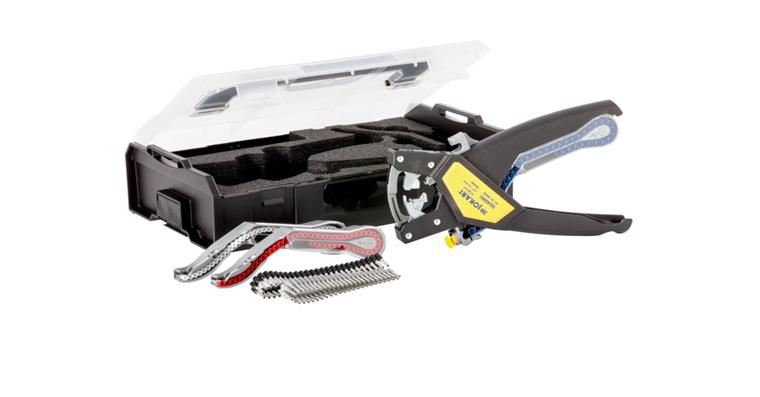

Kabelverarbeitungs-Set Quadro Plus Arbeitsbereich 0,5-2,5 mm2

Kabelverarbeitungs-Set Quadro Plus Arbeitsbereich 0,5-2,5 mm2

Kabelverarbeitungs-Set Quadro Plus Arbeitsbereich 0,5-2,5 mm2
Item no: 1062143 101

Online price:

Available in 6-8 working days.

Application
Crimping wire end ferrules on strips from 0.5 to 2.5 mm2 (AWG 20-14) in accordance with VDE 0609 Part 1.
Suitable for wires with PVC insulation.
Applications in the electrical industry, electrical servicing and panel installation.

Execution
  • Four functions for fast work:
  • Cutting, stripping, twisting, crimping
  • Integrated side cutters for wires up to 2.5 mm2
  • High force transmission enables very easy crimping of wire end ferrules
  • Precise longitudinal stop for uniform stripping
  • Twist system prevents the stranded wires from fraying to ensure reliable insertion of the conductor into the wire end ferrule
  • Rapid magazine change
  • Integrated force stop ensures a consistent, high-quality crimp
  • Force stop function triggers when the crimping punch reaches the end position

Advantage
  • Exemplary integration of four functions in one stripping and crimping tool
  • The perfect balance of ergonomics and functionality
  • Saves considerable time and money when wiring switch cabinets
  • Strips can be reloaded in just a few seconds thanks to simple magazine change, for efficient working
  • No need to adjust to the conductor cross-section


Brand: JOKARI

Manufacturer part no.: 460242

EAN no.: 4011391620001

Product Datasheet
