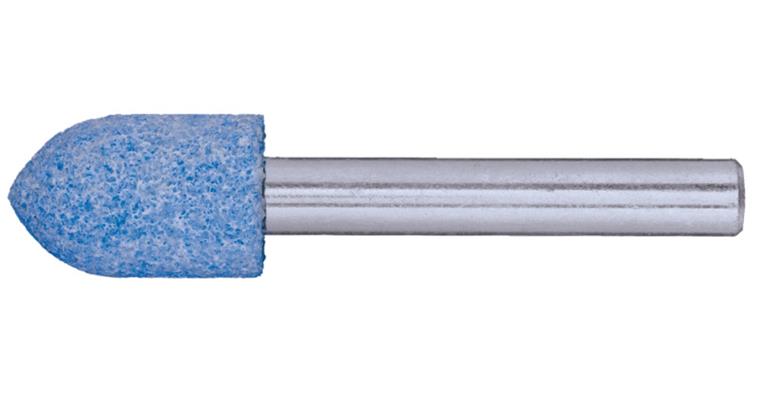

Ogival mounted point G60 x H 13x20 mm hardness J shank dia. x shank length 6x40

Ogival mounted point G60 x H 13x20 mm hardness J shank dia. x shank length 6x40

Ogival mounted point G60 x H 13x20 mm hardness J shank dia. x shank length 6x40
Video
Item no: 1044362 102

Online price:

Available in 6-8 working days.

Application
For extensive use on titanium materials, nickel and cobalt-based alloys, for the machining of hardened steel components, application welds and for the grinding and regrinding of repair welds in tool and mould making.

Advantage
  • Cool sanding, due to good friability of the grain mixture
  • Consistently high removal rate and very long service life due to the self-sharpening effect of the ceramic abrasive grain


Brand: PFERD
Material of abrasive medium: Fused aluminium oxide/ceramic
Hardness: J
Form: Ogive shape
Shank diameter: 6 mm
Shaft length: 40 mm
Head diameter: 13 mm
Grain size: 60
Surface structure: Fine
Binding: Ceramically bound
Colour: Blue
Max. rotation speed: 73400 rpm
Material to be processed: Steel
Type: SP 1320 6
Length of head: 20 mm

Manufacturer part no.: 32107338

EAN no.: 4007220802724

Product Datasheet
