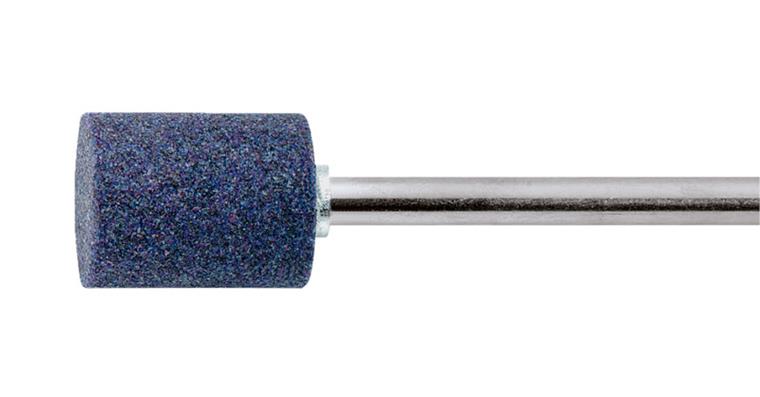

Mounted points NDW shank diameter 3 mm cylindrical DxH 8x10 mm

Mounted points NDW shank diameter 3 mm cylindrical DxH 8x10 mm

Mounted points NDW shank diameter 3 mm cylindrical DxH 8x10 mm
Item no: 1044301 105

Online price:

Still in stock: 6

Application
For forming and tool construction, especially for finishing and deburring work, edge machining, hardened steels.

Execution
  • Recommended cutting speed 10-30 m/sec
  • Composition: N = synthetic corundum, D = dark red corundum, W = white monocrystalline corundum

Advantage
  • Excellent dimensional stability
  • High edge strength
  • Optimal machining results
  • Long service life


Brand: LUKAS-ERZETT
Material of abrasive medium: Corundum / fused aluminium oxide
Hardness: O
Form: Cylindrical
Shank diameter: 3 mm
Shaft length: 50 mm
Head diameter: 8 mm
Grain size: 100
Surface structure: Fine
Binding: Ceramically bound
Colour: Blue
Max. rotation speed: 70000 rpm
Material to be processed: Steel
Type: ZY 0810 3
Length of head: 10 mm

Manufacturer part no.: ZY 0810.03 X 50, NDW 100 QU V115

EAN no.: 4027497012428

Product Datasheet
