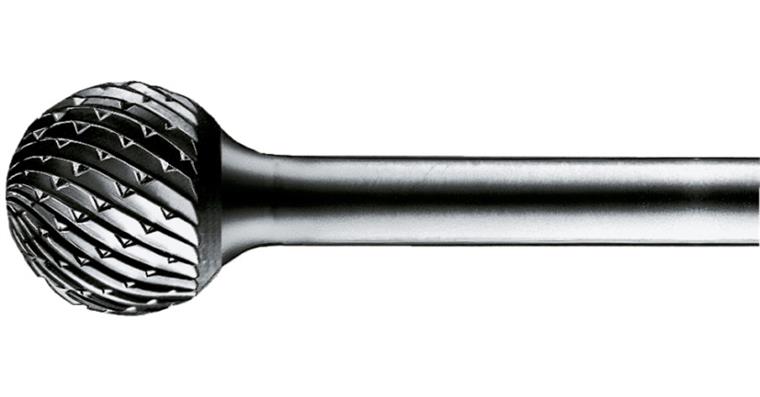

TC bur spherical (KUD), shank dia. 6 mm, serration 4, head dia.xlength 12x10 mm

TC bur spherical (KUD), shank dia. 6 mm, serration 4, head dia.xlength 12x10 mm

TC bur spherical (KUD), shank dia. 6 mm, serration 4, head dia.xlength 12x10 mm
Item no: 1044258 108

Online price:

Available in 6-8 working days.

Application
The high profile accuracy of the carbide burs enables use on robots and repeat re-grinding.

Execution
  • DIN 8032
  • With chip breaker

Advantage
  • The precise concentricity of the PFERD carbide burs:
  • Protects the health of the person during the working process
  • Reduces wear on the drive machine
  • Enables impact-free working
  • Prevents chatter marks

Notes
Other sizes and serrations and carbide burs with special shaft shapes and lengths as well as special serrations deliverable on request.

Brand: PFERD
Material to be processed: Aluminium | Bronze | Stainless steel | Steel | Hardened steel | Non-ferrous metal | Cast steel | Titanium | Titanium alloy | Tool steel
Serration type: 4
Form: Ball shape
Head diameter: 12 mm
Head diameter x cutting edge length: 12 x 10 mm
Shank diameter: 6 mm
Cutting edge diameter: 12 mm
Cutting edge diameter x cutting edge length: 12 x 10 mm
Cutting edge length: 10 mm
Cutting material: Carbide
Length: 51 mm

Manufacturer part no.: KUD 1210/6 Z4

EAN no.: 4007220047071

Product Datasheet
