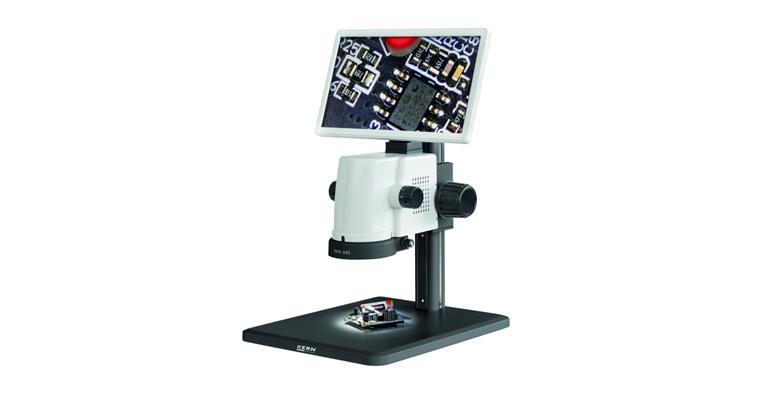

Videomikroskop OIV 345 mit Messfunktion

Videomikroskop OIV 345 mit Messfunktion

Videomikroskop OIV 345 mit Messfunktion
Item no: 1039328 101

Online price:

Still in stock: 1

Application
For checking and documenting defined quality features in production/measuring room.

Execution
  • The 3 watt LED incident light illumination (ring) included as standard guarantees optimal illumination of your samples
  • The excellent optics enable consistently sharp image guidance throughout the zoom range from 0.7x-4.5x
  • Thanks to a HDMI output, the 5 MP camera of the eyepiece-less microscope provides smooth live observation of your samples via the HD monitor. In addition, the intuitive software and the USB wireless mouse, which are integral parts of the scope of delivery, allow you to digitally edit and save your results easily
  • Zoom wheels with integrated click stop
  • Working distance 100 mm, maximum sample height 110 mm
  • A variety of measurement functions: Distance, circular, midpoint, rectangular, polygon measurements and many more.

Delivery
1x base unit
1x dust protection hood
Operating instructions
USB wireless mouse
Calibration standard


Type: OIV 345
Display (diagonal): 12 in
Magnification: 4.5-times
Incident light: LED ring light
Camera type: USB 3.0, 5 megapixel
Display resolution: 1920 x 1080 pix

Manufacturer part no.: OIV 345

EAN no.: 4045761356634

Product Datasheet
